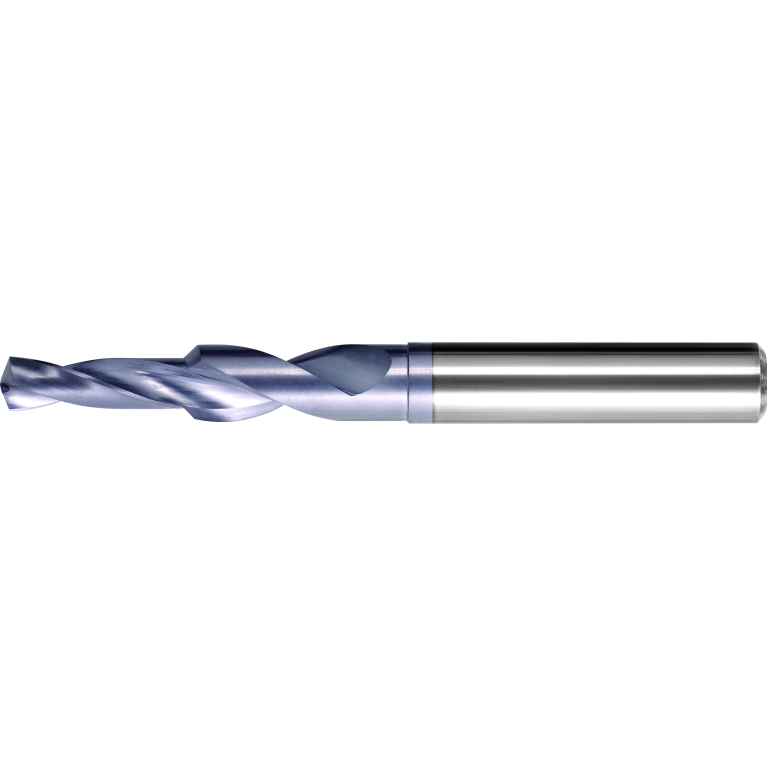

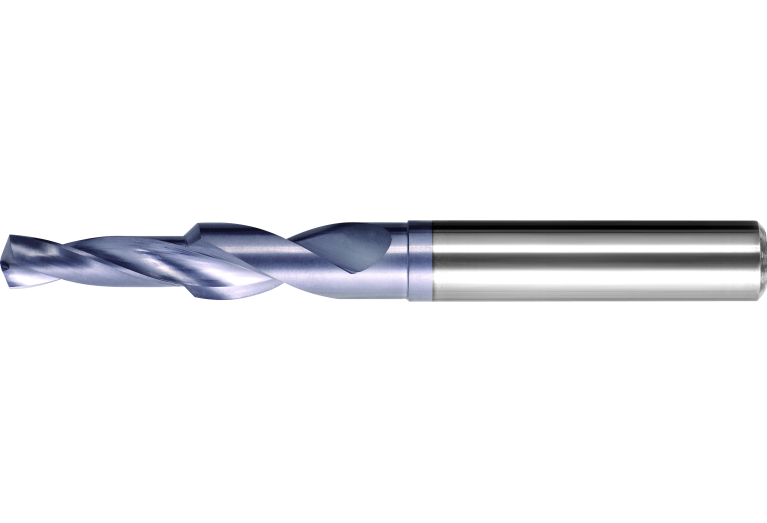

Главная Каталог продукции Toolunited 10 302-02 - Step drill 1557SU03-M14×1.5 KDG303

1557SU03-M14×1.5 KDG303

Артикул: 1557SU03-M14×1.5 KDG303

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

AlTiN

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state

NL - Discontinued

DIN

ZYL01600105

FamilyProducts

SU drill 3xD

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

KDG303

HAND Cutting direction

R - Right

ID Identifying order number

1557SU03-M14×1.5 KDG303

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

65 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LS Shank length

48 mm

NOF Flute count

NOS Step count

OAL Overall length

115 mm

SDL Step diameter length

34.5 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BPB - Drilling of profiles
