Главная Каталог продукции Toolunited 10 302-01 - Twist Drill A1249TFL-5.2

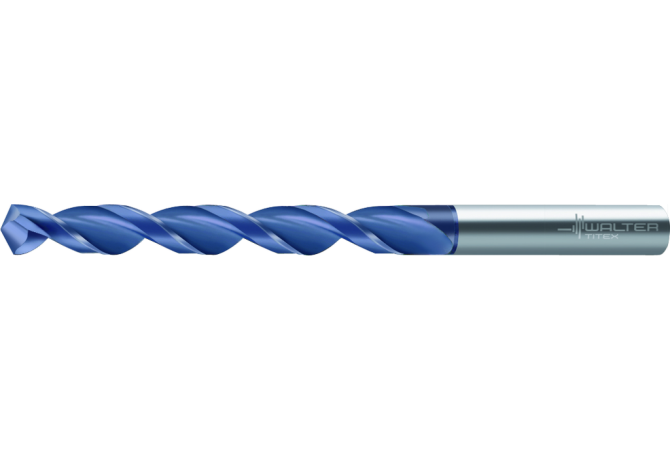

A1249TFL-5.2

A1249TFL-5.2 A1249TFL-5.2 A1249TFL-5.2 A1249TFL-5.2

A1249TFL-5.2

Walter
Артикул: 5060810
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit

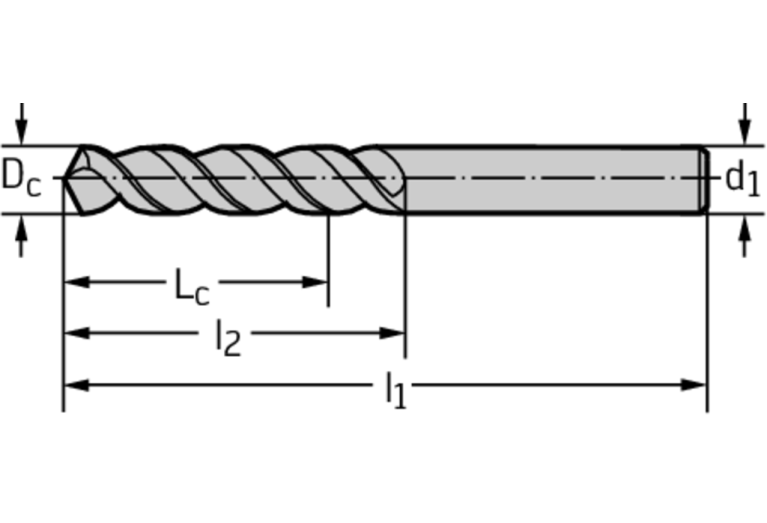

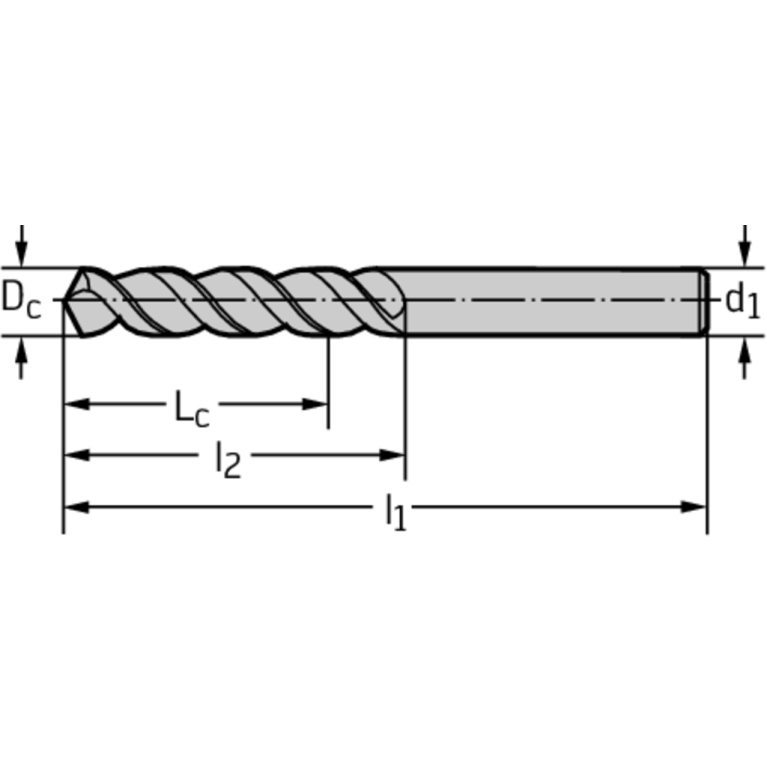

DC Cutting diameter minimum
5.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00520105
FamilyProducts
HSS-E deep-hole drills A1249TFL
FHA Flute helix angle
40 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
TFL
HAND Cutting direction
R - Right
ID Technical product number
5060810
Interface codes
J6 / J61
ISO
ZYL01F5200f$11
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
52 mm
LF Functional length
84.79 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0052
LOC-03 DCONMS Diameter
5.2 mm
LOC-03 TCDCONCDMS Tolerance class coded
f$11
LOC-03 ISO
ZYL01F5200f$11
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00520105
LPR Protruding length
54.6024 mm
LU Usable length
44 mm
Name Identifying order number
A1249TFL-5.2
NOF Flute count
2

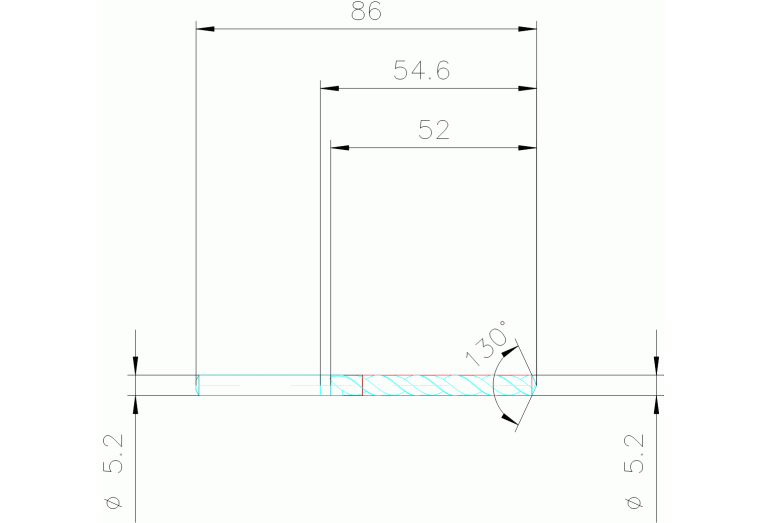

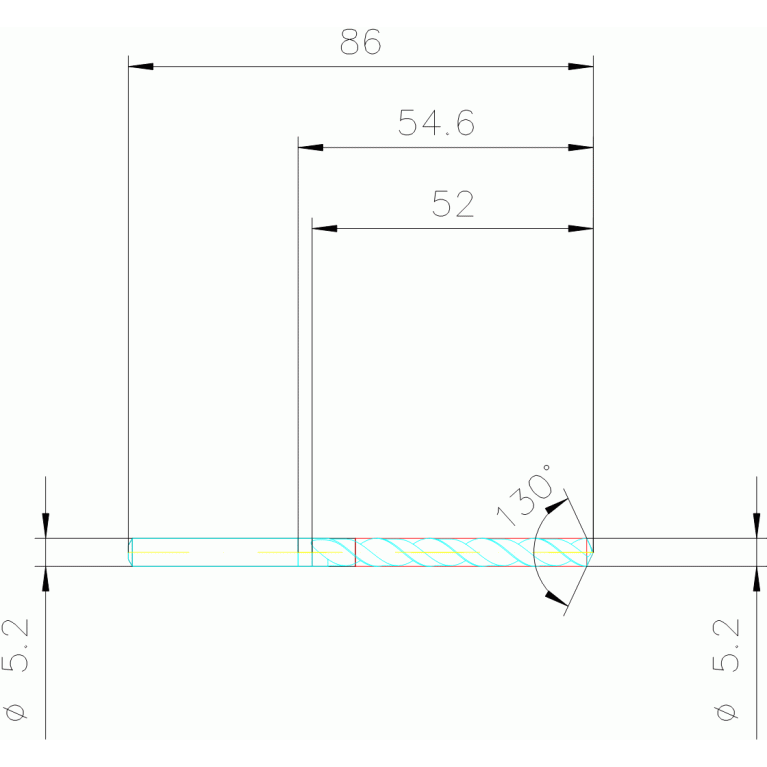

OAL Overall length
86 mm
PL Point length
1.2124 mm
RPMX Rotational speed maximum
100000 1/min
SIG Point angle 1st step
130 Degree
STDNO Standard
DIN 338
TCDCONMS ISO-tolerance class shank diameter
f11
Working process
BVB - Drilling
WT Weight of item
0.01 kg
