Главная Каталог продукции Toolunited 10 302-01 - Twist Drill 114610 8,5

114610 8,5

Артикул: 114610 8,5

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

8.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/18/2017

DIN

ZYL00850105

FamilyProducts

Jobber drill HSS-E-PM HPC TiAlN

FHA Flute helix angle

38 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSS E-PM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

75 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0085

LOC-03 DCONMS Diameter

8.5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00850105

LPR Protruding length

79 mm

LS Shank length

42 mm

LU Usable length

67 mm

Name Identifying order number

114610 8,5

NOF Flute count

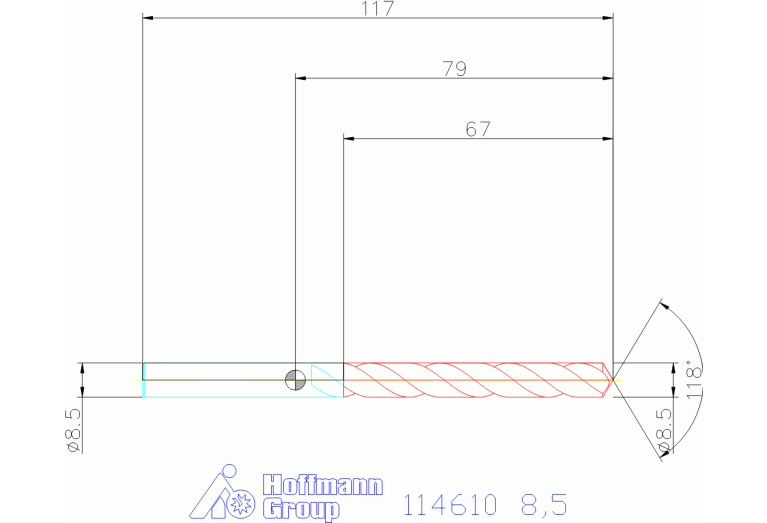

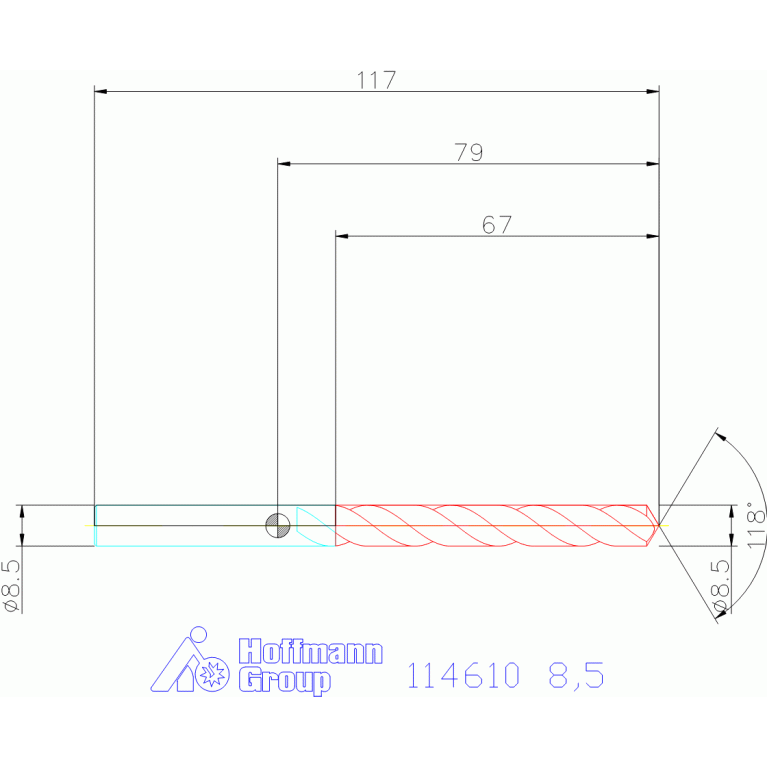

OAL Overall length

117 mm

PL Point length

2.51524 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN338

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.037 kg
