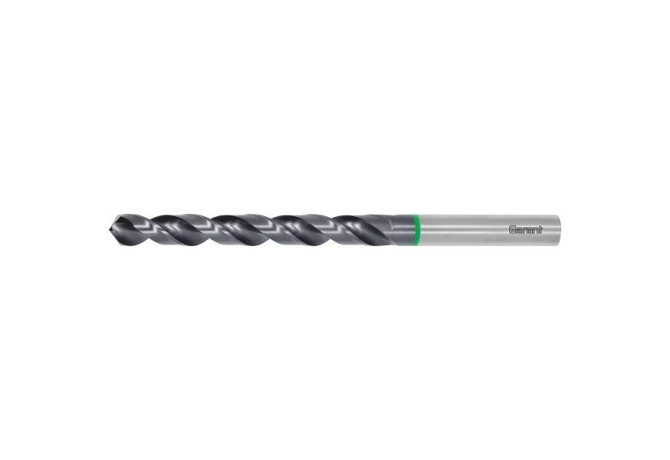

Главная Каталог продукции Toolunited 10 302-01 - Twist Drill 114580 1,3

114580 1,3

Артикул: 114580 1,3

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

1.3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/18/2017

DIN

ZYL00130105

FamilyProducts

HSS-E jobber drill

FHA Flute helix angle

35 Degree

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE TiAlN

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

16 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0013

LOC-03 DCONMS Diameter

1.3 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00130105

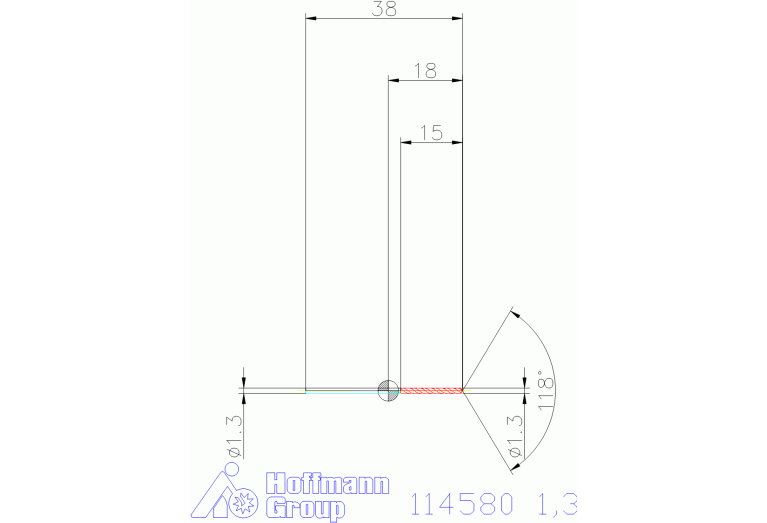

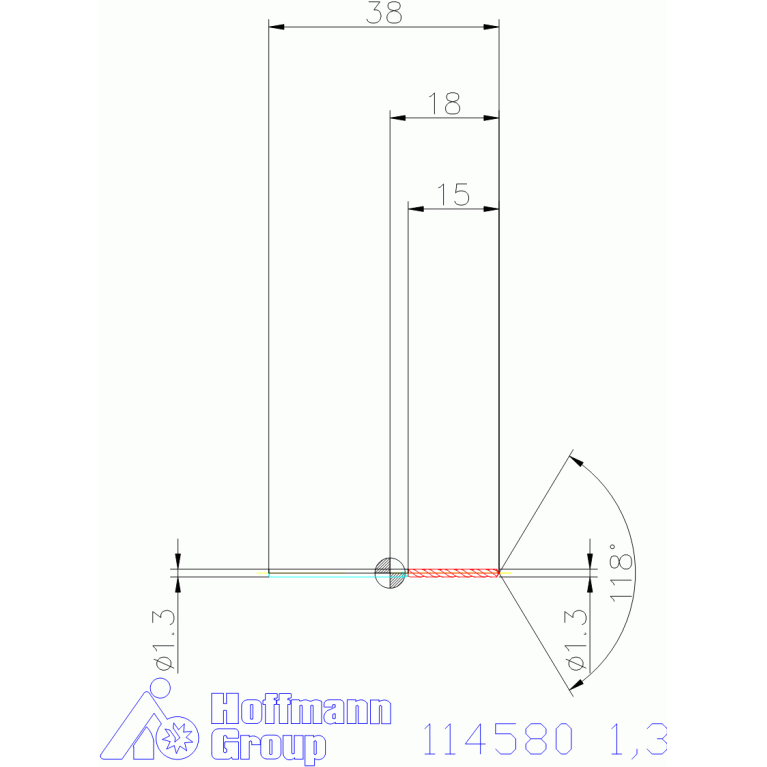

LPR Protruding length

18 mm

LS Shank length

22 mm

LU Usable length

15 mm

Name Identifying order number

114580 1,3

NOF Flute count

OAL Overall length

38 mm

PL Point length

0.31524 mm

SIG Point angle 1st step

118 Degree

STDNO Standard

DIN338

Working process

BVB - Drilling

WT Weight of item

0.001 kg
