114030 20
114030 20
Артикул:
114030 20
В наличии

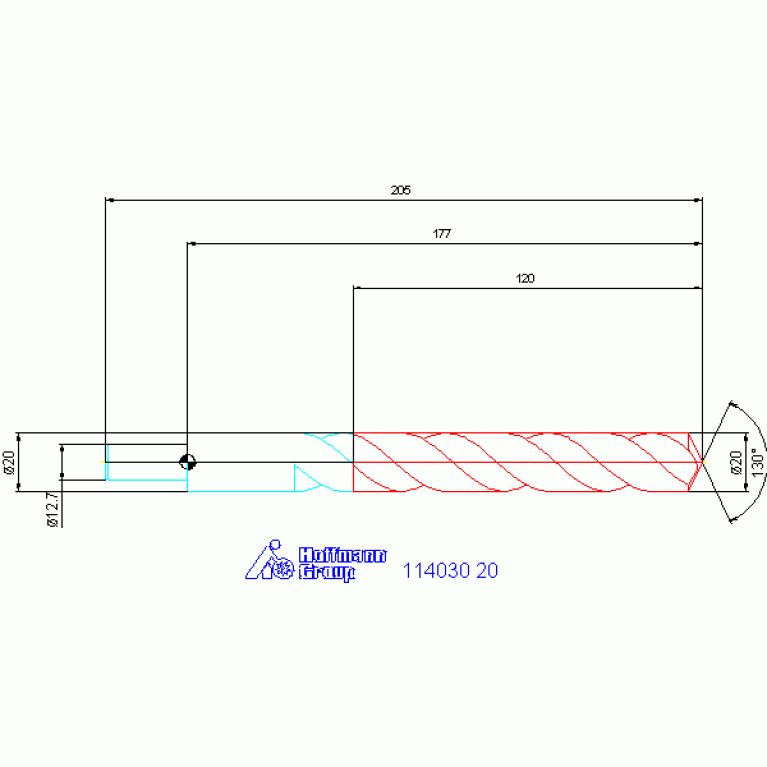

Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/1/2017
DIN
ZYL01270105
FamilyProducts
HSS jobber drill N
FHA Flute helix angle
42 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
HSS
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
140 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0127
LOC-03 DCONMS Diameter
12.7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01270105
LPR Protruding length
177 mm
LS Shank length
28 mm
LU Usable length
120 mm
Name Identifying order number
114030 20
NOF Flute count
2
OAL Overall length
205 mm
PL Point length
4.7 mm
SIG Point angle 1st step
130 Degree
STDNO Standard
DIN 338
Working process
BVB - Drilling
WT Weight of item
0.347 kg
