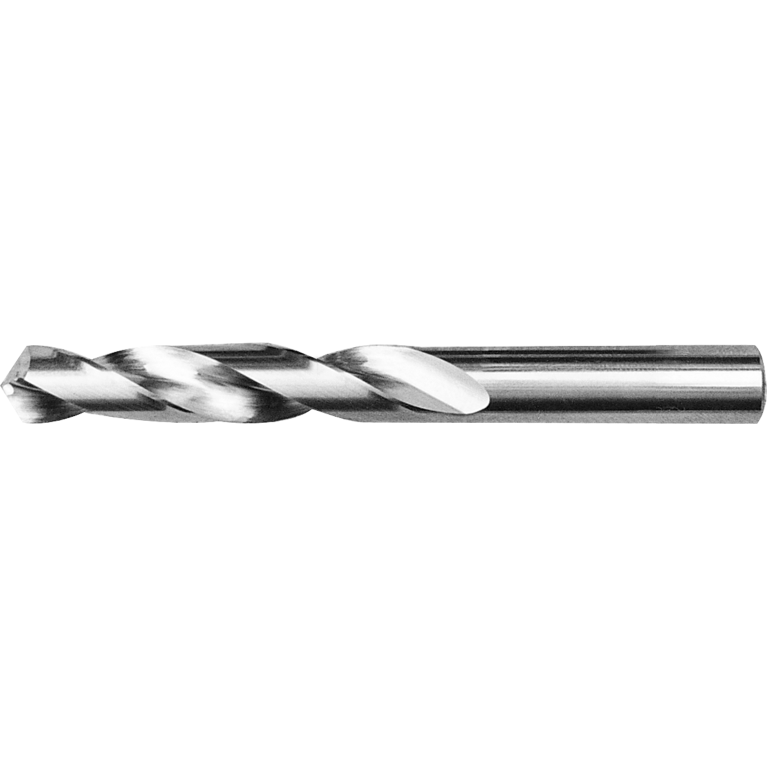

1105SC03-1300 YK20F

Артикул: 1105SC03-1300 YK20F

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

13 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1.38 kg

DIN

ZYL01300105

FamilyProducts

SC drill 3xD

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

YK20F

HAND Cutting direction

R - Right

ID Identifying order number

1105SC03-1300 YK20F

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

51 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0130

LOC-03 DCONMS Diameter

13 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01300105

NOF Flute count

OAL Overall length

102 mm

SIG Point angle 1st step

118 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling
