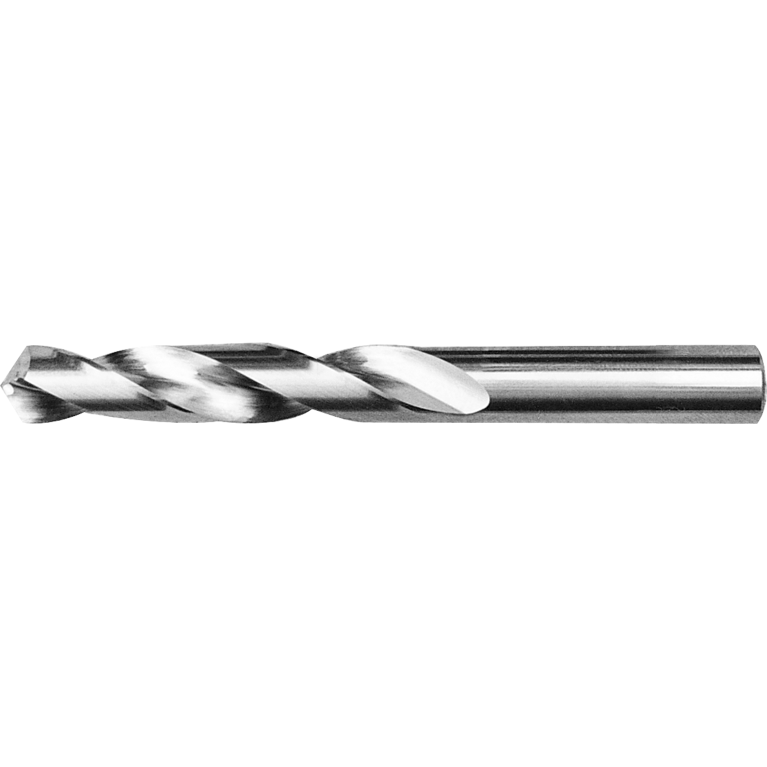

1105SC03-0300 YK20F
1105SC03-0300 YK20F
Артикул:
1105SC03-0300 YK20F
В наличии
Характеристики
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
ZCC - ZCC Cutting Tools
CXSC Coolant exit style code
0 - Without coolant exit

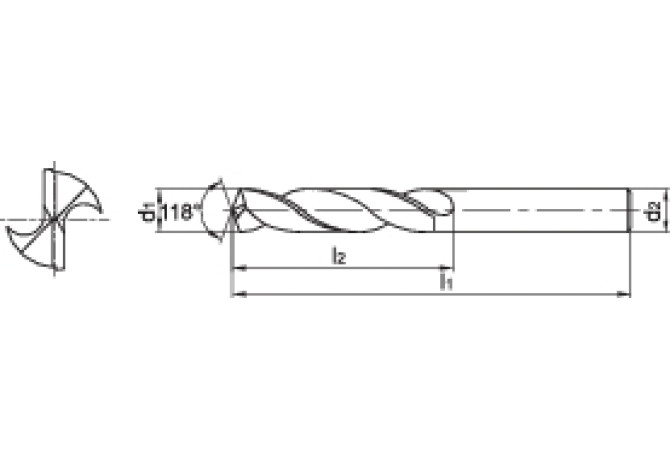

DC Cutting diameter minimum
3 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
0.06 kg
DIN
ZYL00300105
FamilyProducts
SC drill 3xD
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
YK20F
HAND Cutting direction
R - Right
ID Identifying order number
1105SC03-0300 YK20F
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
16 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0030
LOC-03 DCONMS Diameter
3 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00300105
NOF Flute count
2
OAL Overall length
46 mm
SIG Point angle 1st step
118 Degree
TCDCONMS ISO-tolerance class shank diameter
h7
Working process
BVB - Drilling
