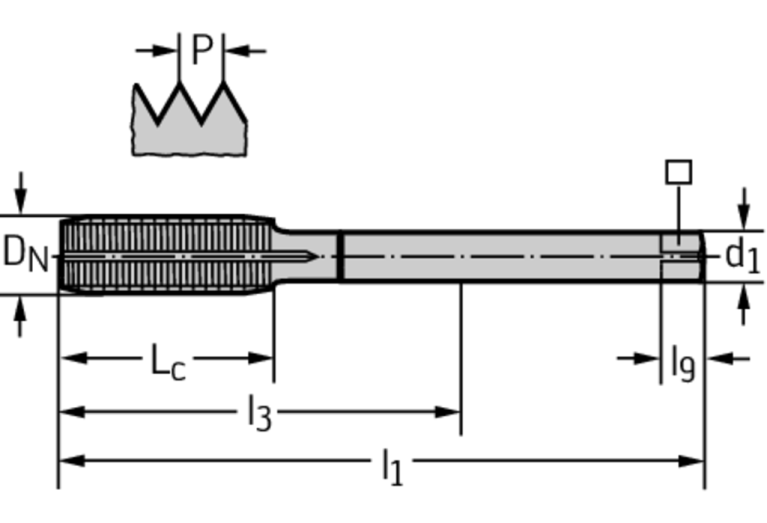

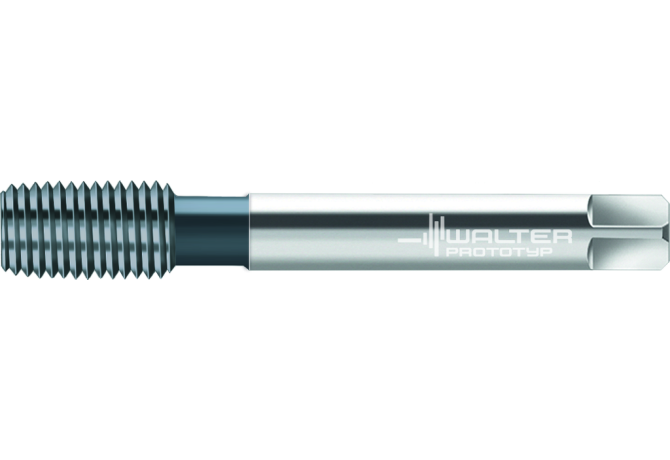

TC420-M14-LE-WW60BA

TC420-M14-LE-WW60BA TC420-M14-LE-WW60BA TC420-M14-LE-WW60BA

TC420-M14-LE-WW60BA

Walter
Артикул: 7427416
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiCN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01102105
FamilyProducts
HSS-E-PM machine thread formers TC420
GRDMFG Grade manufacturers designation
WW60BA
HAND Cutting direction
R - Right
ID Technical product number
7427416
Interface codes
J6 / J61
ISO
ZYL21G1100h$09
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0110
LOC-03 DCONMS Diameter
11 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1100h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01102105
Name Identifying order number
TC420-M14-LE-WW60BA
NOF Flute count
6
OAL Overall length
110 mm
PLCD Gate diameter
13.1 mm
PLG Plug style
E - Kappa r 23°
STDNO Standard
DIN 2174
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
4.1 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
14 mm
THFT Thread form type
M
THL Thread cutting part length
20 mm
THOD Thread designation
M14x2-6HX
TP Thread pitch
2 mm
TTPID Tap type identifier
4 - Forming tap
Working process
EGI - Threading, internal
WT Weight of item
0.086 kg
