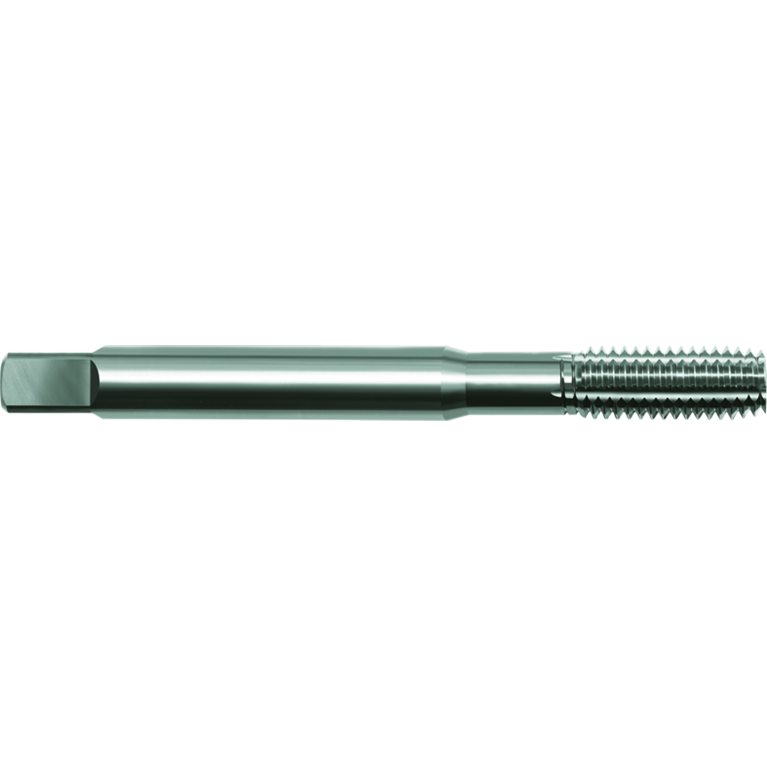

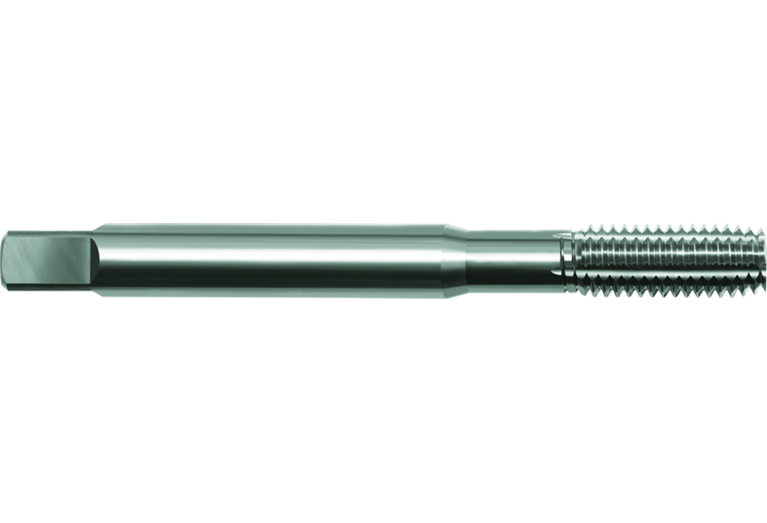

4222M-M16*1.5-6H YK40F

4222M-M16*1.5-6H YK40F 4222M-M16*1.5-6H YK40F 4222M-M16*1.5-6H YK40F

4222M-M16*1.5-6H YK40F

ZCC Cutting Tools
Артикул: 4222M-M16*1.5-6H YK40F
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
ohne
COMPC Company code
ZCC - ZCC Cutting Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
SF - Made to order
DIN
ZYL01202105
FamilyProducts
Thread former
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
YK40F
HAND Cutting direction
R - Right
ID Identifying order number
4222M-M16*1.5-6H YK40F
Interface codes
J6 /
ISYC Subclass
301-03 - Thread forming tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01202105
NOF Flute count
6
OAL Overall length
110 mm
TCL Tap chamfer length
4.5 mm
TCTR Thread tolerance class
6H
TD Thread diameter
16 mm
THFT Thread form type
MF
THL Thread cutting part length
27 mm
THOD Thread designation
MF16x1.5-6H
TP Thread pitch
1.5 mm
Working process
No working processes available
