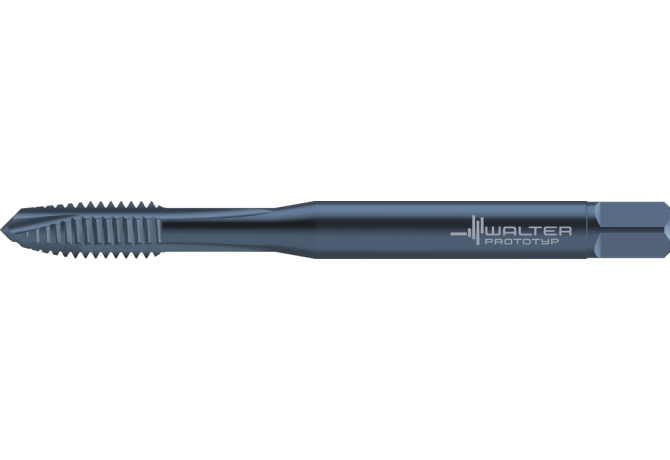

TC217.UNC10-E0-WY80RG

TC217.UNC10-E0-WY80RG TC217.UNC10-E0-WY80RG TC217.UNC10-E0-WY80RG

TC217.UNC10-E0-WY80RG

Walter
Артикул: 7849627
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
TiAlN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01942125
DN Neck diameter
3.45 mm
FamilyProducts
HSS-E machine taps TC217
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
WY80RG
HAND Cutting direction
R - Right
ID Technical product number
7849627
Interface codes
J6 / J61
ISO
ZYL21R1940h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
25 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0194
LOC-03 DCONMS Diameter
4.928 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21R1940h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01942125
LS Shank length
38 mm
Materials
P,M,K,N
Name Identifying order number
TC217.UNC10-E0-WY80RG
NOF Flute count
3
OAL Overall length
71.87 mm
PLCD Gate diameter
3.71 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN/ANSI
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
4.76 mm
TCTR Thread tolerance class
H7
TDIN Thread diameter nominal inch
0.19 in
TDZ Thread diameter size
10
THFT Thread form type
UNC
THL Thread cutting part length
13 mm
THOD Thread designation
UNC10-24-H7
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.009 kg
