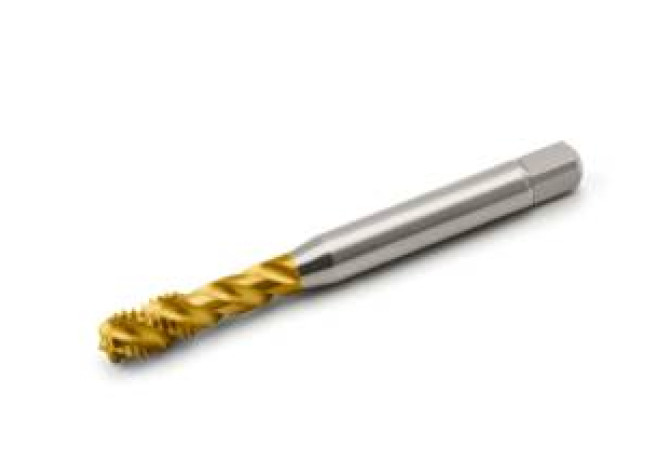

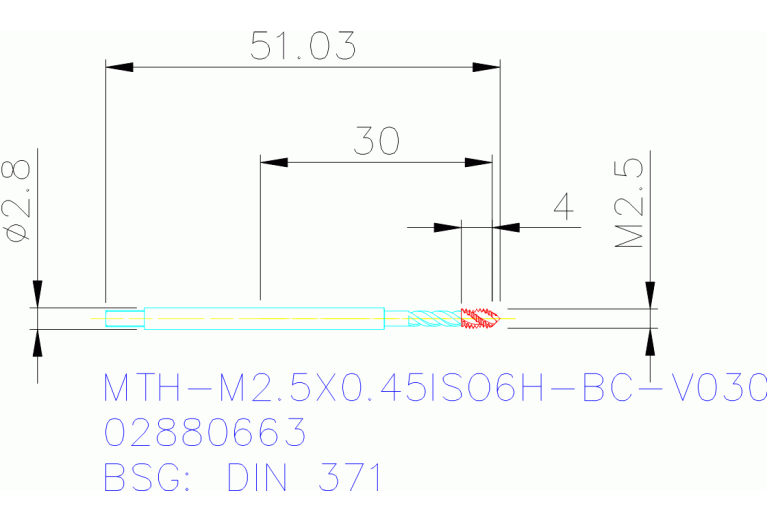

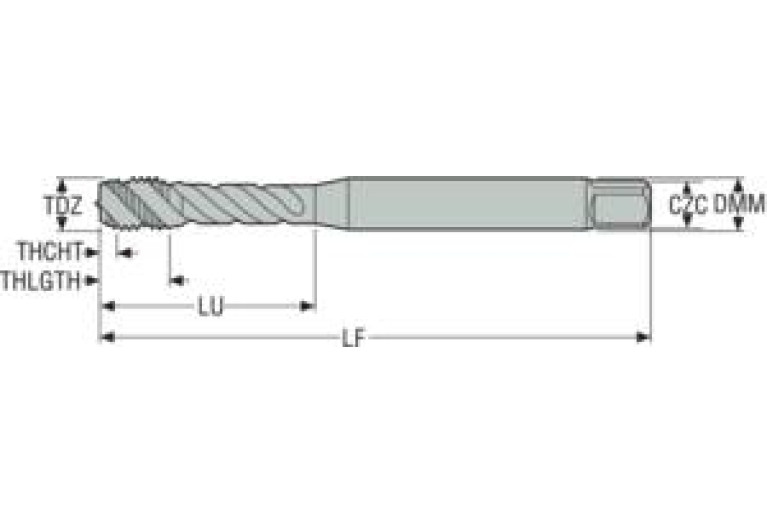

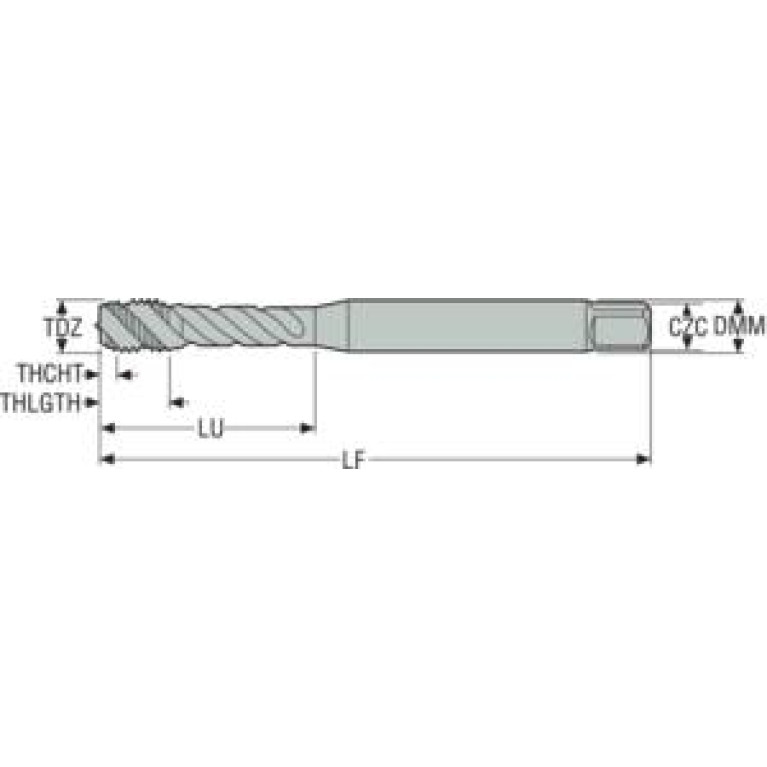

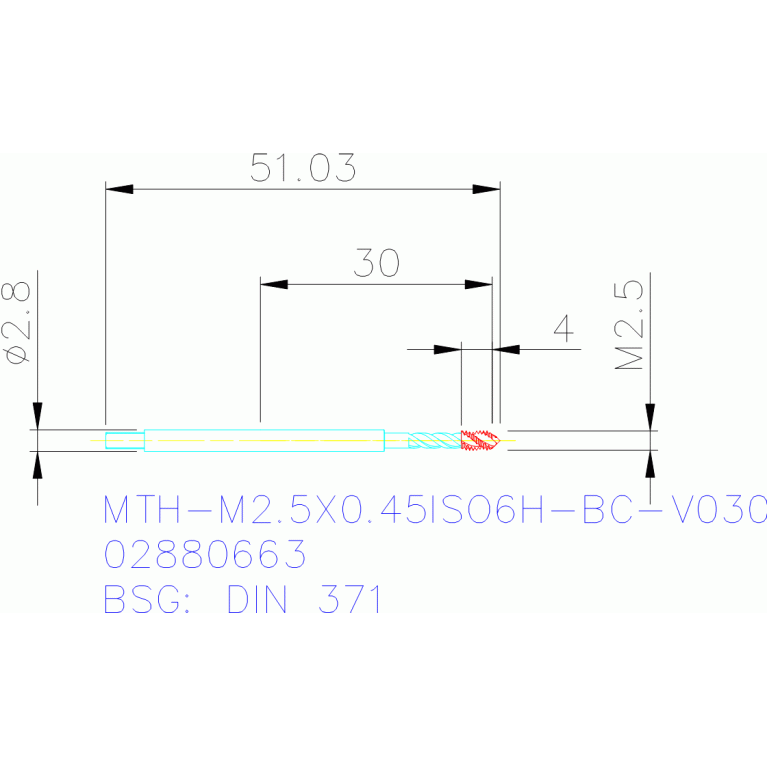

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank MTH-M2.5X0.45ISO6H-BC-V030

MTH-M2.5X0.45ISO6H-BC-V030

MTH-M2.5X0.45ISO6H-BC-V030 MTH-M2.5X0.45ISO6H-BC-V030 MTH-M2.5X0.45ISO6H-BC-V030 MTH-M2.5X0.45ISO6H-BC-V030

MTH-M2.5X0.45ISO6H-BC-V030

Seco
Артикул: 02880663
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL00282105
FamilyProducts
MTH-M2.5X0.45ISO6H-BC-V030
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
02880663
Interface codes
J6 / J61
ISO
ZYL21F2800$$$$
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
12.5 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0028
LOC-03 DCONMS Diameter
2.8 mm
LOC-03 ISO
ZYL21F2800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00282105
Name Identifying order number
MTH-M2.5X0.45ISO6H-BC-V030
NOF Flute count
3
OAL Overall length
50 mm
PLCD Gate diameter
2.1 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN371
TCTR Thread tolerance class
6H
TD Thread diameter
2.5 mm
THFT Thread form type
M
THL Thread cutting part length
4 mm
THOD Thread designation
M2.5x0.45-6H
TP Thread pitch
0.45 mm
Working process
BG - Tapping
WT Weight of item
0.002 kg
