Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank BU539300.5040

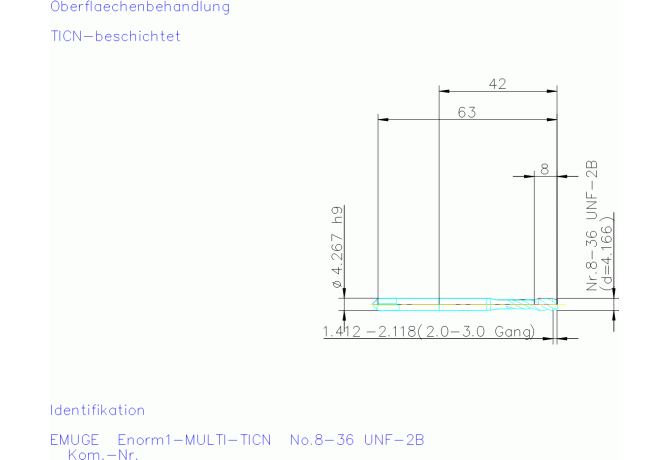

BU539300.5040

Артикул: BU539300.5040

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TICN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL01682125

DRVS Drive size

3.33 mm

FamilyProducts

MGB-US-Enorm1-MULTI-TICN

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

21 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0168

LOC-03 DCONMS Diameter

4.267 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01682125

Name Identifying order number

BU539300.5040

OAL Overall length

63 mm

PLG Plug style

C - Kappa r 15°

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

TD Thread diameter

4.166 mm

TDIN Thread diameter nominal inch

0.164 in

TDZ Thread diameter size

THFT Thread form type

UNF

THOD Thread designation

UNF8-36-2B

TP Thread pitch

0.706 mm

TPI Threads per inch

36 1/in

Working process

No working processes available

WT Weight of item

0.006 kg
