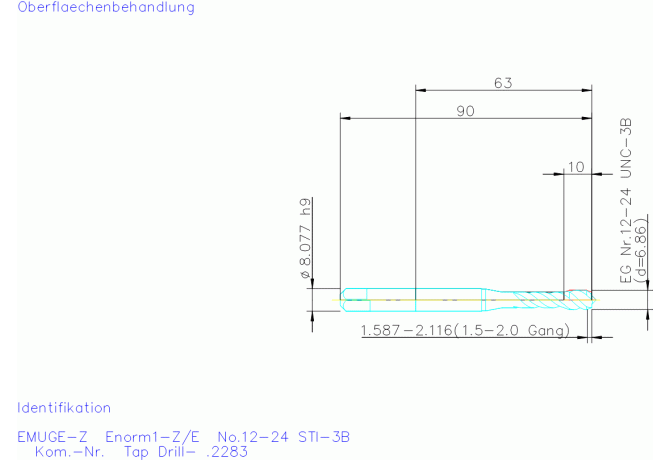

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank BU513510.5616

BU513510.5616

Артикул: BU513510.5616

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL03182125

DRVS Drive size

6.05 mm

FamilyProducts

MGB-US-Enorm1-Z/E

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

32 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0318

LOC-03 DCONMS Diameter

8.077 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03182125

Name Identifying order number

BU513510.5616

OAL Overall length

90 mm

PLG Plug style

E - Kappa r 23°

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

TD Thread diameter

6.86 mm

TDIN Thread diameter nominal inch

0.216 in

TDZ Thread diameter size

THFT Thread form type

EG-UNC

TP Thread pitch

1.058 mm

TPI Threads per inch

24 1/in

Working process

No working processes available

WT Weight of item

0.026 kg
