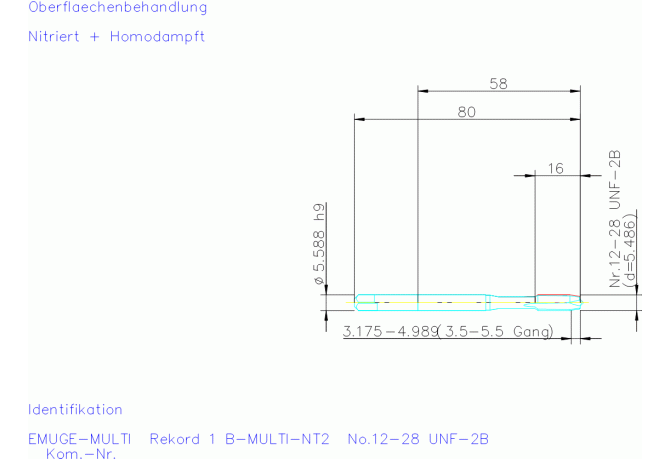

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank BU497300.5042

BU497300.5042

Артикул: BU497300.5042

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

NT2

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL02202125

DRVS Drive size

4.19 mm

FamilyProducts

MGB-US-Rek.1B-MULTI-NT2

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

29 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

5.588 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02202125

Name Identifying order number

BU497300.5042

OAL Overall length

80 mm

PLG Plug style

B - Kappa r 8°

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

TD Thread diameter

5.486 mm

TDIN Thread diameter nominal inch

0.216 in

TDZ Thread diameter size

THFT Thread form type

UNF

THOD Thread designation

UNF12-28-2B

TP Thread pitch

0.907 mm

TPI Threads per inch

28 1/in

Working process

No working processes available

WT Weight of item

0.012 kg
