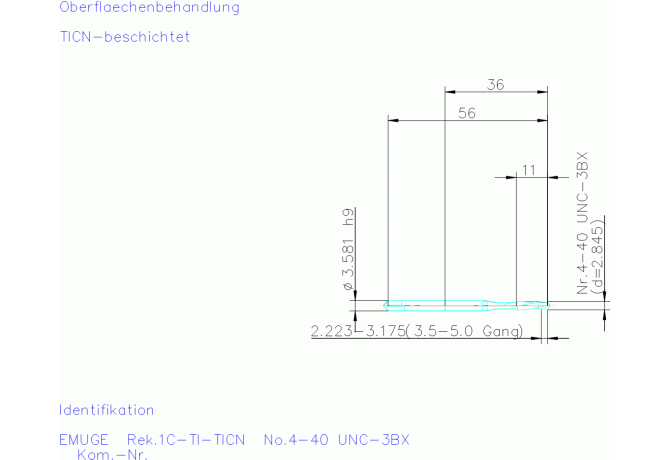

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank BU309611.5003

BU309611.5003

Артикул: BU309611.5003

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TICN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL01412125

DRVS Drive size

2.79 mm

FamilyProducts

MGB-US-Rek.1C-TI-TICN

FHH Flute helix hand

L - Hand of helix left

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

18 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0141

LOC-03 DCONMS Diameter

3.581 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01412125

Name Identifying order number

BU309611.5003

OAL Overall length

56 mm

PLG Plug style

D - Kappa r 8°

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

3BX

TD Thread diameter

2.845 mm

TDIN Thread diameter nominal inch

0.112 in

TDZ Thread diameter size

THFT Thread form type

UNC

THOD Thread designation

UNC4-40-3BX

TP Thread pitch

0.635 mm

TPI Threads per inch

40 1/in

Working process

No working processes available

WT Weight of item

0.003 kg
