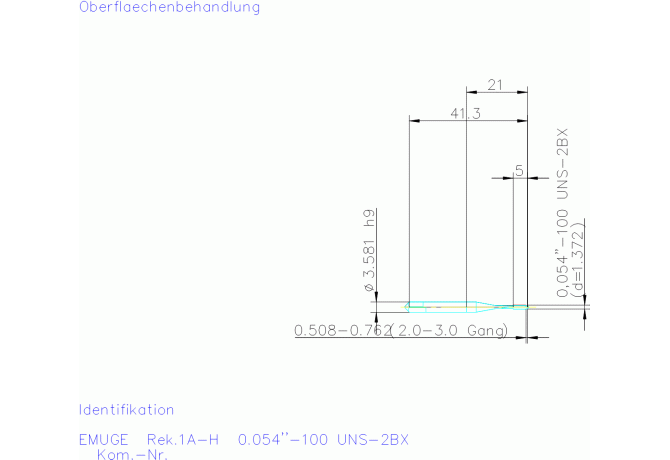

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank BU100501.6693

BU100501.6693

Артикул: BU100501.6693

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL01412125

DRVS Drive size

2.79 mm

FamilyProducts

MGB-US-Rek.1A-H

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

11 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0141

LOC-03 DCONMS Diameter

3.581 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01412125

Name Identifying order number

BU100501.6693

OAL Overall length

41.3 mm

PLG Plug style

C - Kappa r 15°

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

2BX

TD Thread diameter

1.372 mm

TDIN Thread diameter nominal inch

0.054 in

THFT Thread form type

UNS

TP Thread pitch

0.254 mm

TPI Threads per inch

100 1/in

Working process

No working processes available

WT Weight of item

0.002 kg
