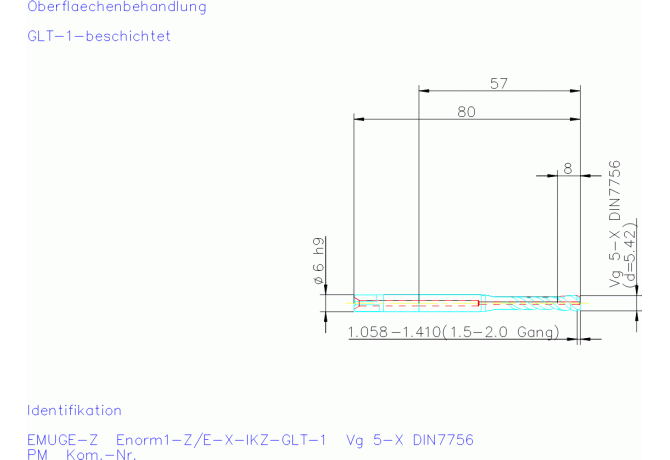

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank B161A601.4180

B161A601.4180

Артикул: B161A601.4180

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

GLT-1

COMPC Company code

E - Emuge

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DIN

ZYL00602115

DRVS Drive size

4.9 mm

FamilyProducts

MGB-Enorm1-Z/E-X-IKZ-PM-GLT-1

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE-PM

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

30 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602115

Name Identifying order number

B161A601.4180

OAL Overall length

80 mm

PLG Plug style

E - Kappa r 23°

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

TD Thread diameter

5 mm

THFT Thread form type

TP Thread pitch

0.705 mm

TPI Threads per inch

36 1/in

Working process

No working processes available

WT Weight of item

0.014 kg
