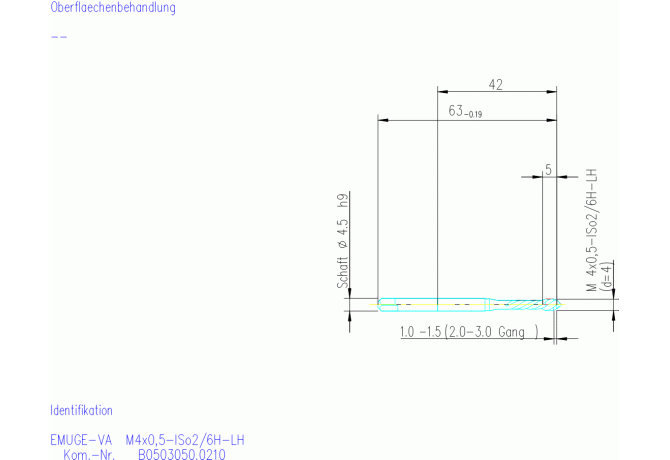

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank B0503050.0210

B0503050.0210

B0503050.0210 B0503050.0210

B0503050.0210

Emuge
Артикул: B0503050.0210
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
E - Emuge
CRCLDIN Chip removal class
NF
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.011 mm
DCONMSUD Shank diameter upper limit
0 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/1/2022
DIN
ZYL00452105
DN Neck diameter
10 mm
DRVS Drive size
3.4 mm
FamilyProducts
M/C Tap
FHH Flute helix hand
L - Hand of helix left
GRDMFG Grade manufacturers designation
HSS
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
L - Left
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
21 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0045
LOC-03 DCONMS Diameter
4.5 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00452105
LS Shank length
45 mm
Name Identifying order number
B0503050.0210
OAL Overall length
63 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 371
TCDCONMS ISO-tolerance class shank diameter
h6
TCTR Thread tolerance class
ISO 2/6H
TD Thread diameter
4 mm
THFT Thread form type
M
THOD Thread designation
M4x0.5-ISO 2/6H
TP Thread pitch
0.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.006 kg
