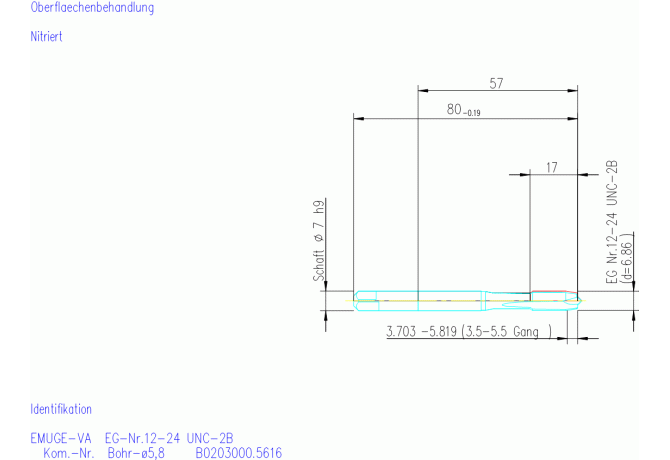

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank B0203000.5616

B0203000.5616

Артикул: B0203000.5616

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

Delivery state valid from

10/1/2022

DIN

ZYL00702105

DRVS Drive size

5.5 mm

FamilyProducts

M/C Tap

FHH Flute helix hand

N - Hand of helix neutral

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

30 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702105

Name Identifying order number

B0203000.5616

OAL Overall length

80 mm

PLG Plug style

B - Kappa r 8°

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

TD Thread diameter

6.86 mm

TDIN Thread diameter nominal inch

0.216 in

TDZ Thread diameter size

THFT Thread form type

EG-UNC

TP Thread pitch

1.058 mm

TPI Threads per inch

24 1/in

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.01 kg
