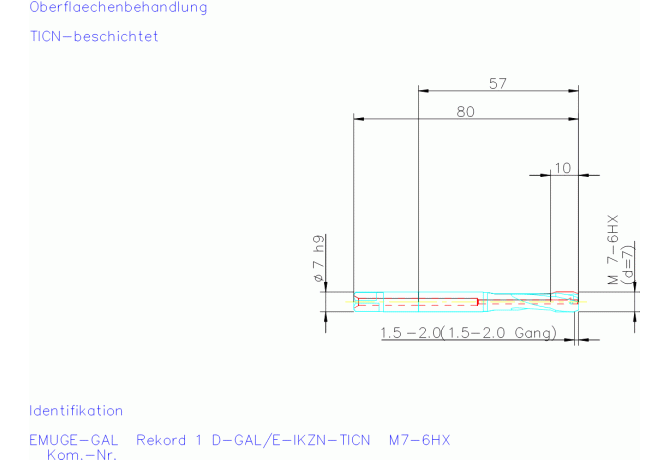

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank B0089501.0070

B0089501.0070

Артикул: B0089501.0070

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TICN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

2 - With Coolant exit, radial

DIN

ZYL00702115

DRVS Drive size

5.5 mm

FamilyProducts

MGB-Rek.1D-GAL/E-IKZN-TICN

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

30 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702115

Name Identifying order number

B0089501.0070

OAL Overall length

80 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

DIN 371

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

6HX

TD Thread diameter

7 mm

THFT Thread form type

THOD Thread designation

M7x1-6HX

TP Thread pitch

1 mm

Working process

No working processes available

WT Weight of item

0.019 kg
