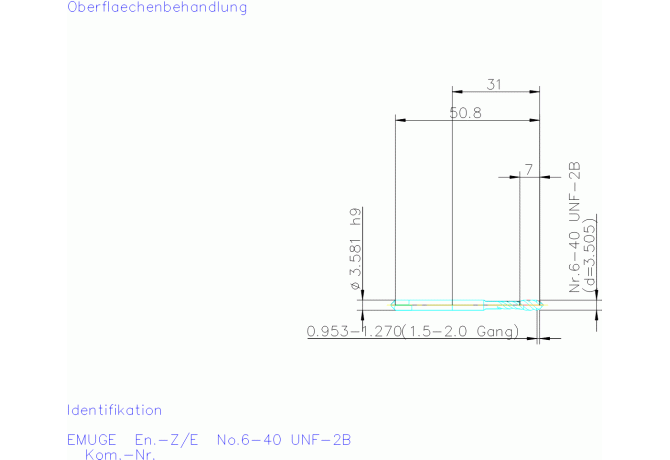

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank AU513500.5039

AU513500.5039

AU513500.5039 AU513500.5039

AU513500.5039

Emuge
Артикул: AU513500.5039
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
ohne
COMPC Company code
E - Emuge
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/1/2024
DIN
ZYL01412125
DRVS Drive size
2.79 mm
FamilyProducts
machine tap
FHH Flute helix hand
R - Hand of helix right
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
19 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0141
LOC-03 DCONMS Diameter
3.581 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01412125
Name Identifying order number
AU513500.5039
OAL Overall length
50.8 mm
PLG Plug style
E - Kappa r 23°
STDNO Standard
ASME B94.9
TCTR Thread tolerance class
2B
TD Thread diameter
3.505 mm
TDIN Thread diameter nominal inch
0.138 in
TDZ Thread diameter size
6
THFT Thread form type
UNF
THOD Thread designation
UNF6-40-2B
TP Thread pitch
0.635 mm
TPI Threads per inch
40 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.003 kg
