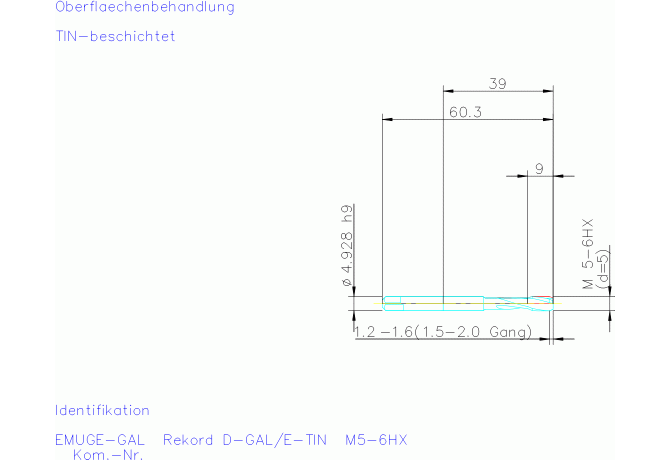

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank AU464101.0050

AU464101.0050

Артикул: AU464101.0050

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TIN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL01942125

DRVS Drive size

3.86 mm

FamilyProducts

MGB-US-Rek.D-GAL/E-TIN

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

24 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0194

LOC-03 DCONMS Diameter

4.928 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01942125

Name Identifying order number

AU464101.0050

OAL Overall length

60.3 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

ASME B94.9

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

6HX

TD Thread diameter

5 mm

THFT Thread form type

THOD Thread designation

M5x0.8-6HX

TP Thread pitch

0.8 mm

Working process

No working processes available

WT Weight of item

0.007 kg
