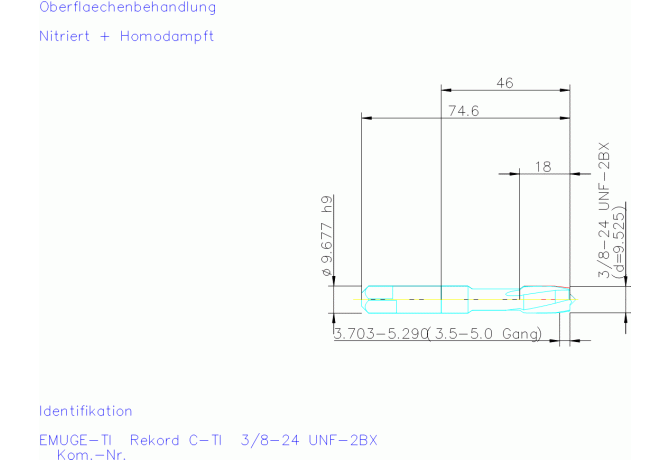

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank AU306001.5045

AU306001.5045

AU306001.5045 AU306001.5045

AU306001.5045

Emuge
Артикул: AU306001.5045
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
NT2
COMPC Company code
E - Emuge
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/1/2024
DIN
ZYL03812125
DRVS Drive size
7.26 mm
FamilyProducts
machine tap
FHH Flute helix hand
L - Hand of helix left
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
35 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0381
LOC-03 DCONMS Diameter
9.677 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03812125
Name Identifying order number
AU306001.5045
OAL Overall length
74.6 mm
PLG Plug style
D - Kappa r 8°
STDNO Standard
ASME B94.9
TCTR Thread tolerance class
2BX
TD Thread diameter
9.525 mm
TDFR Thread diameter nominal fraction
3/8 in
TDIN Thread diameter nominal inch
0.375 in
THFT Thread form type
UNF
THOD Thread designation
UNF3/8-24-2BX
TP Thread pitch
1.058 mm
TPI Threads per inch
24 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.032 kg
