Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank AU203100.5043

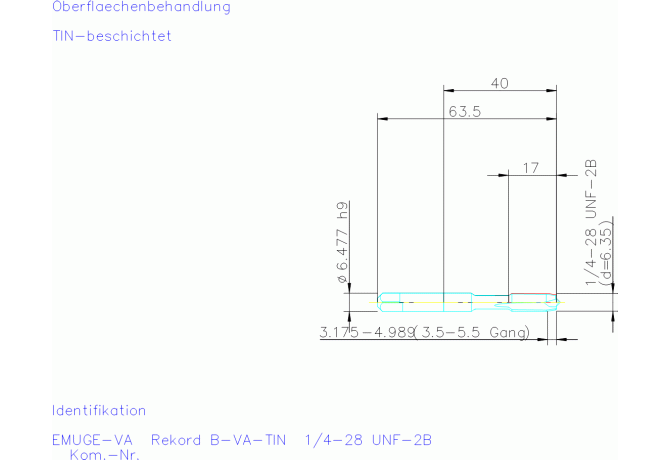

AU203100.5043

Артикул: AU203100.5043

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TIN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL02552125

DRVS Drive size

4.85 mm

FamilyProducts

MGB-US-Rek.B-VA-TIN

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

29 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0255

LOC-03 DCONMS Diameter

6.477 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02552125

Name Identifying order number

AU203100.5043

OAL Overall length

63.5 mm

PLG Plug style

B - Kappa r 8°

STDNO Standard

ASME B94.9

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

TD Thread diameter

6.35 mm

TDFR Thread diameter nominal fraction

1/4 in

TDIN Thread diameter nominal inch

0.25 in

THFT Thread form type

UNF

THOD Thread designation

UNF1/4-28-2B

TP Thread pitch

0.907 mm

TPI Threads per inch

28 1/in

Working process

No working processes available

WT Weight of item

0.01 kg
