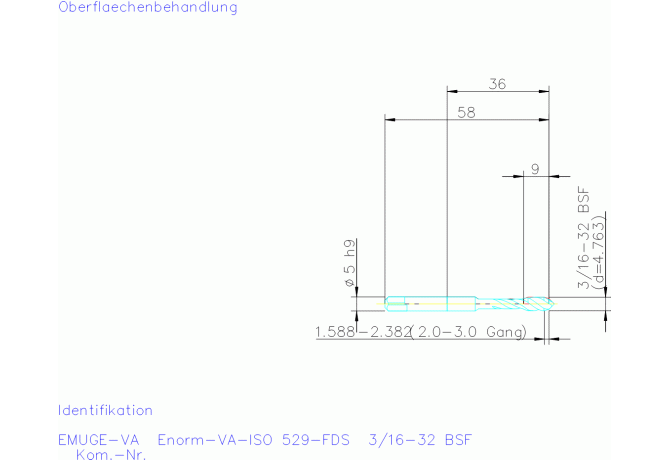

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank AS503000.3088

AS503000.3088

Артикул: AS503000.3088

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL00502105

DRVS Drive size

4 mm

FamilyProducts

MGB-Enorm-VA/ISO529-FDS

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00502105

Name Identifying order number

AS503000.3088

OAL Overall length

58 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

ISO 529-FDS

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

med

TD Thread diameter

4.763 mm

TDFR Thread diameter nominal fraction

3/16 in

TDIN Thread diameter nominal inch

0.1875 in

THFT Thread form type

BSF

THOD Thread designation

BSF3/16-32-med

TP Thread pitch

0.794 mm

TPI Threads per inch

32 1/in

Working process

No working processes available

WT Weight of item

0.007 kg
