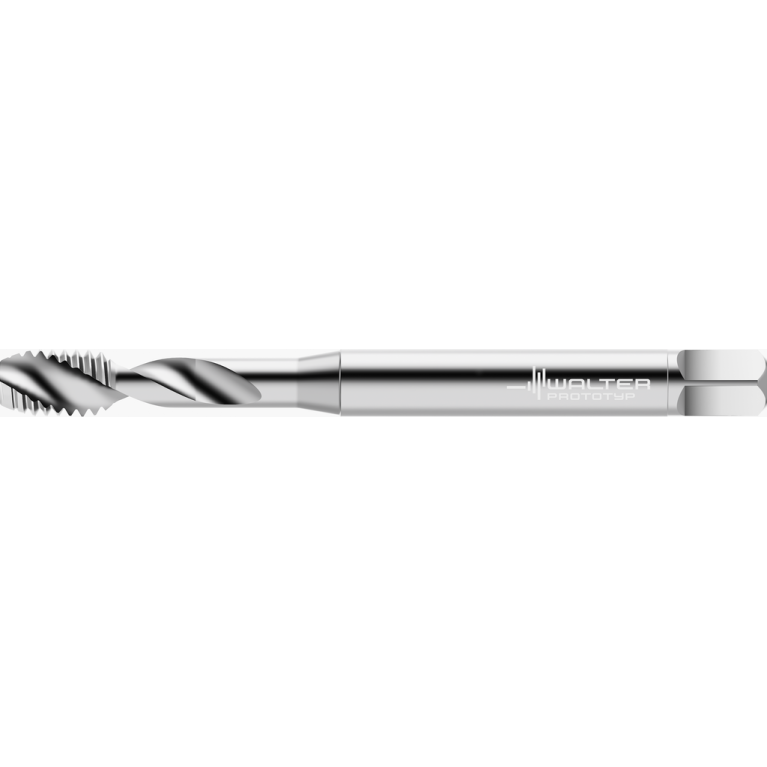

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank AN225069-STIUNC4

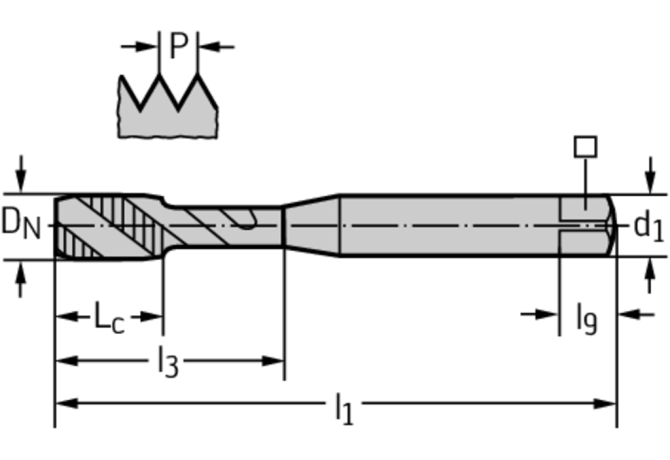

AN225069-STIUNC4

AN225069-STIUNC4 AN225069-STIUNC4 AN225069-STIUNC4

AN225069-STIUNC4

Walter
Артикул: 7569496
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating / Покрытие
ohne
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01412125
DN Neck diameter
2.81 mm
FamilyProducts
HSS-E machine taps
FHA Flute helix angle
35 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
7569496
Interface codes
J6 / J61
ISO
ZYL21R1410h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
21 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0141
LOC-03 DCONMS Diameter
3.581 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21R1410h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01412125
LS Shank length
36 mm
Materials
N,S,O
Name Identifying order number
AN225069-STIUNC4
NOF Flute count
2
OAL Overall length
57.5 mm
PLCD Gate diameter
2.97 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN/ANSI
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
1.59 mm
TCTR Thread tolerance class
3B
TDIN Thread diameter nominal inch
0.1445 in
TDZ Thread diameter size
4
THFT Thread form type
EGUNC
THL Thread cutting part length
7 mm
TPI Threads per inch
40 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.006 kg
