Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank AE2331416-UNF12

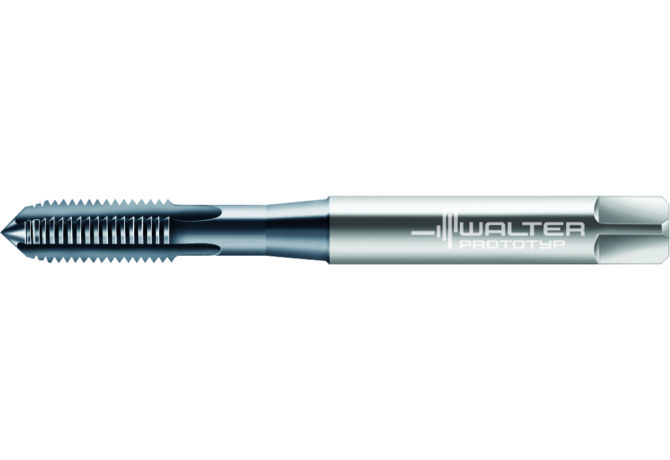

AE2331416-UNF12

AE2331416-UNF12 AE2331416-UNF12 AE2331416-UNF12

AE2331416-UNF12

Walter
Артикул: 7569327
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COATN Coating / Покрытие
TiCN
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02202135
DN Neck diameter
4.27 mm
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
TICN
HAND Cutting direction
R - Right
ID Technical product number
7569327
Interface codes
J6 / J61
ISO
ZYL21R2200h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
30 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
5.588 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21R2200h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02202135
LS Shank length
42 mm
Materials
K,N,O
Name Identifying order number
AE2331416-UNF12
NOF Flute count
4
OAL Overall length
82.29 mm
PLCD Gate diameter
4.53 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN/ANSI
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.27 mm
TCTR Thread tolerance class
2B
TDIN Thread diameter nominal inch
0.216 in
TDZ Thread diameter size
12
THFT Thread form type
UNF
THL Thread cutting part length
15 mm
THOD Thread designation
UNF12-28-2B
TPI Threads per inch
28 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.014 kg
