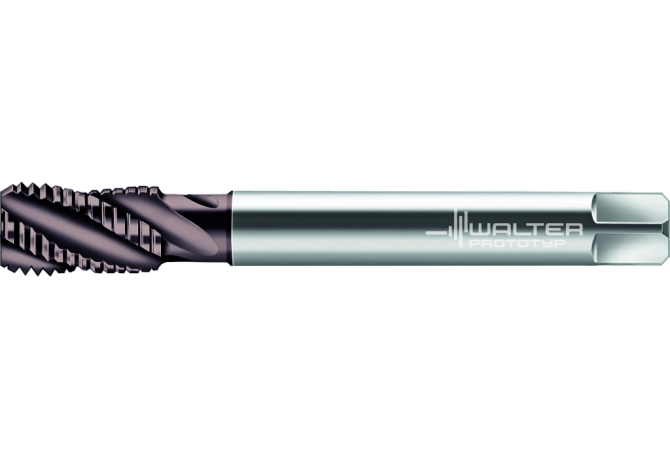

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank AC2355062-UNF1/2

AC2355062-UNF1/2

AC2355062-UNF1/2 AC2355062-UNF1/2 AC2355062-UNF1/2 AC2355062-UNF1/2

AC2355062-UNF1/2

Walter
Артикул: 5934447
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL03672125
DN Neck diameter
9.02 mm
FamilyProducts
HSS-E machine taps
FHA Flute helix angle
35 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
THL
HAND Cutting direction
R - Right
ID Technical product number
5934447
Interface codes
J6 / J61
ISO
ZYL21R3670h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
71.9 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0367
LOC-03 DCONMS Diameter
9.3218 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21R3670h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03672125
Name Identifying order number
AC2355062-UNF1/2
NOF Flute count
5

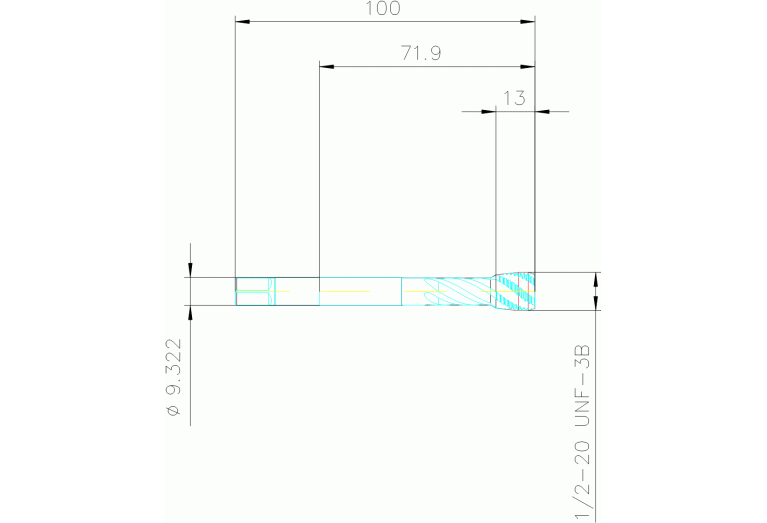

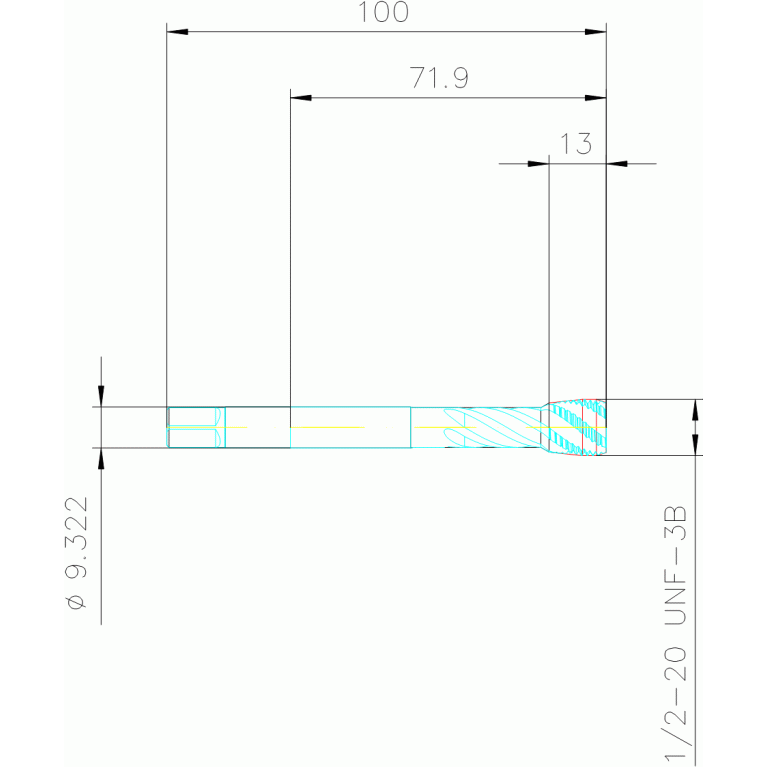

OAL Overall length
100 mm
PLCD Gate diameter
11.37 mm
STDNO Standard
DIN/ANSI
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.22 mm
TCTR Thread tolerance class
3B
TD Thread diameter
12.7 mm
TDFR Thread diameter nominal fraction
1/2 in
THFT Thread form type
UNF
THL Thread cutting part length
13 mm
THOD Thread designation
UNF1/2-20-3B
TP Thread pitch
1.27 mm
TPI Threads per inch
20 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.054 kg
