Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank A0101009.5041

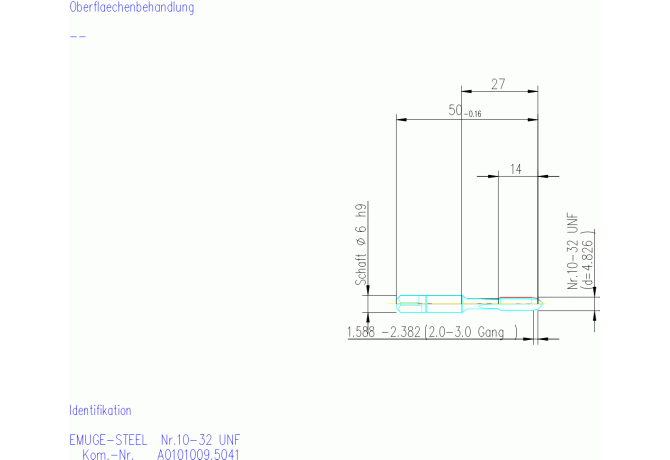

A0101009.5041

Артикул: A0101009.5041

В наличии

В корзину

Описание

Характеристики

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

Delivery state valid from

10/1/2022

DIN

ZYL00602105

DRVS Drive size

4.9 mm

FamilyProducts

M/C Tap

FHH Flute helix hand

N - Hand of helix neutral

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-02 - Thread cutting tap with reinforced shank

LDRED Neck length

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602105

Name Identifying order number

A0101009.5041

OAL Overall length

50 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 2184-2

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

4.826 mm

TDIN Thread diameter nominal inch

0.19 in

TDZ Thread diameter size

THFT Thread form type

UNF

TP Thread pitch

0.794 mm

TPI Threads per inch

32 1/in

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.008 kg
