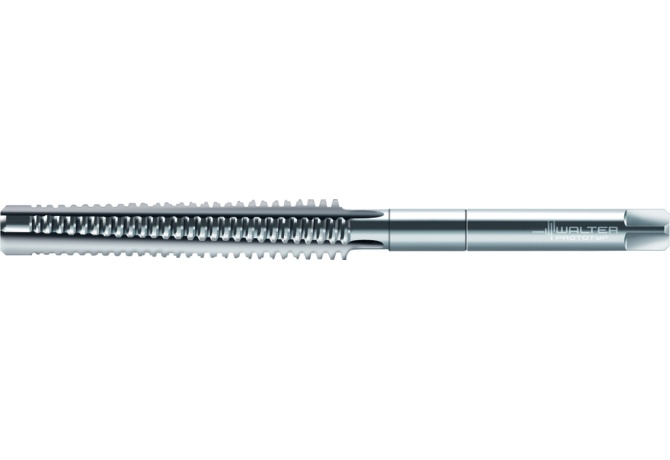

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank 29900-TR28X5

29900-TR28X5

29900-TR28X5 29900-TR28X5 29900-TR28X5

29900-TR28X5

Walter
Артикул: 5079090
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02202105
DN Neck diameter
21.7 mm
FamilyProducts
HSS-E trapezoidal taps
FHA Flute helix angle
5 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
L - Left
ID Technical product number
5079090
Interface codes
J6 / J61
ISO
ZYL21G2200h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
220 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G2200h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02202105
Name Identifying order number
29900-TR28X5
NOF Flute count
3
OAL Overall length
285 mm
PLCD Gate diameter
23.3 mm
STDNO Standard
PWZ-NORM
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
120 mm
TCTR Thread tolerance class
7H
TD Thread diameter
28 mm
THFT Thread form type
TR
THL Thread cutting part length
150 mm
THOD Thread designation
TR28x5-7H
TP Thread pitch
5 mm
TTPID Tap type identifier
4 - Forming tap
Working process
EGI - Threading, internal
WT Weight of item
0.808 kg
