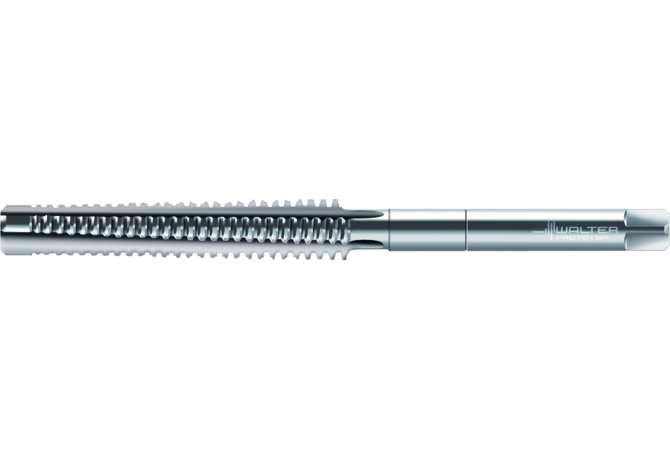

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank 29900-TR10X2

29900-TR10X2

29900-TR10X2 29900-TR10X2 29900-TR10X2 29900-TR10X2

29900-TR10X2

Walter
Артикул: 5079081
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00702105
DN Neck diameter
6.7 mm
FamilyProducts
HSS-E trapezoidal taps
FHA Flute helix angle
5 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
L - Left
ID Technical product number
5079081
Interface codes
J6 / J61
ISO
ZYL21F7000h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
112 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F7000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105
Name Identifying order number
29900-TR10X2
NOF Flute count
3
OAL Overall length
135 mm
PLCD Gate diameter
8.3 mm
STDNO Standard
PWZ-NORM
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
48 mm
TCTR Thread tolerance class
7H
TD Thread diameter
10 mm
THFT Thread form type
TR
THL Thread cutting part length
60 mm
THOD Thread designation
TR10x2-7H
TP Thread pitch
2 mm
TTPID Tap type identifier
4 - Forming tap
Working process
EGI - Threading, internal
WT Weight of item
0.037 kg
