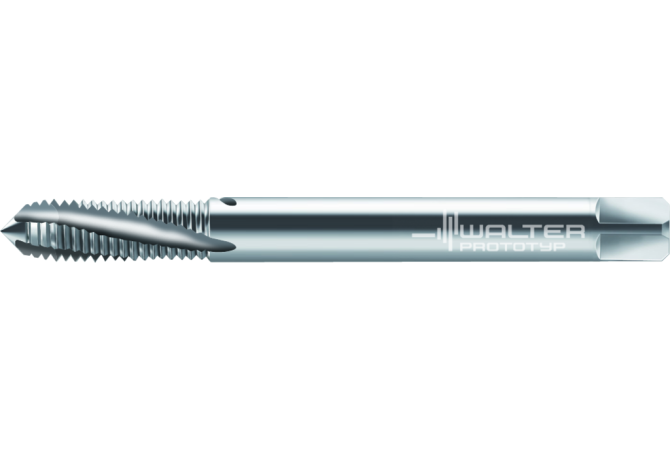

Главная Каталог продукции Toolunited 10 301-02 - Thread cutting tap with reinforced shank 2041014-MJ10

2041014-MJ10

2041014-MJ10 2041014-MJ10 2041014-MJ10 2041014-MJ10

2041014-MJ10

Walter
Артикул: 5200312
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01002105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
10 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5200312
Interface codes
J6 / J61
ISO
ZYL21G1000h$09
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
25.5 mm
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
Name Identifying order number
2041014-MJ10
NOF Flute count
3
OAL Overall length
104.26 mm
PLCD Gate diameter
8.43 mm
STDNO Standard
~DIN 371
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
3.75 mm
TCTR Thread tolerance class
4H
TD Thread diameter
10 mm
THFT Thread form type
MJ
THL Thread cutting part length
25.5 mm

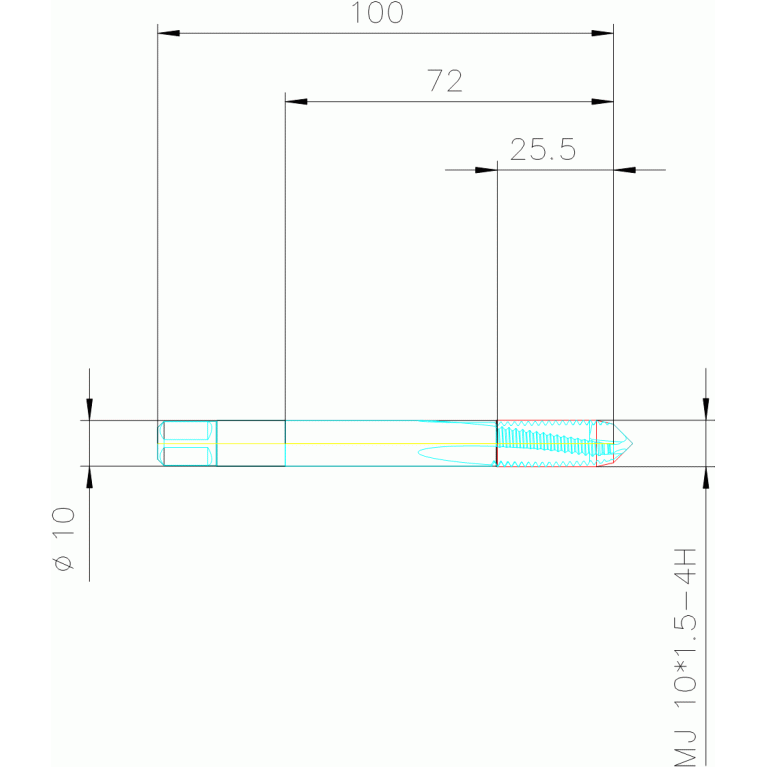

THOD Thread designation
MJ10x1.5-4H
TP Thread pitch
1.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.053 kg
