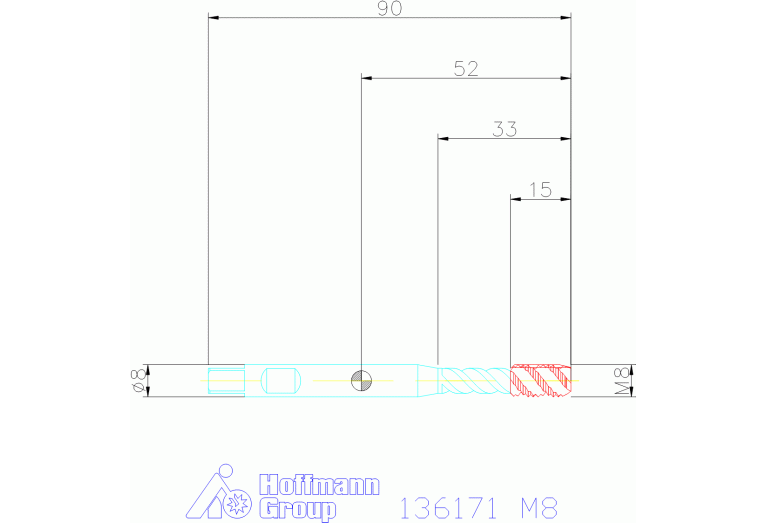

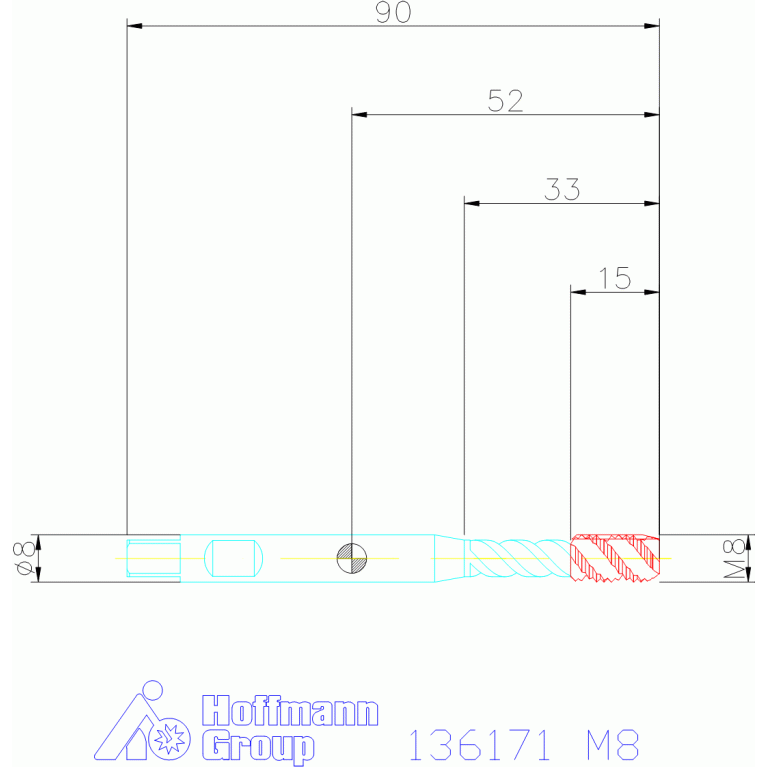

136171 M8
136171 M8
Артикул:
136171 M8
В наличии
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAlN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
DIN
ZYL00801005
FamilyProducts
Machine tap for synchronised spindles
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
HSS E-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
33 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00801005
LS Shank length
52 mm
Name Identifying order number
136171 M8
NOF Flute count
3
OAL Overall length
90 mm
PLCD Gate diameter
6.57 mm
PLG Plug style
C - Kappa r 15°
TCTR Thread tolerance class
6HX
TD Thread diameter
8 mm
THFT Thread form type
M
THL Thread cutting part length
15 mm
THOD Thread designation
M8-6HX
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.037 kg
