132741 M2,5
132741 M2,5
Артикул:
132741 M2,5
В наличии
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiAlN
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
DIN
ZYL00601005
FamilyProducts

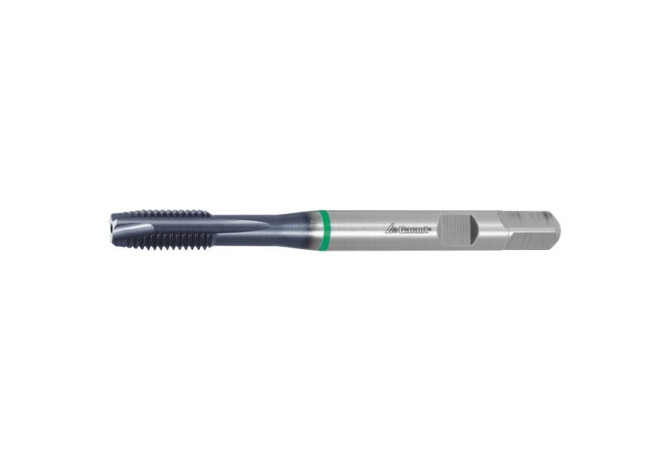

Machine tap for synchronised spindles HSS-E-PM
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS E-PM
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
15 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0060
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00601005
LS Shank length
46 mm
Name Identifying order number
132741 M2,5
NOF Flute count
3

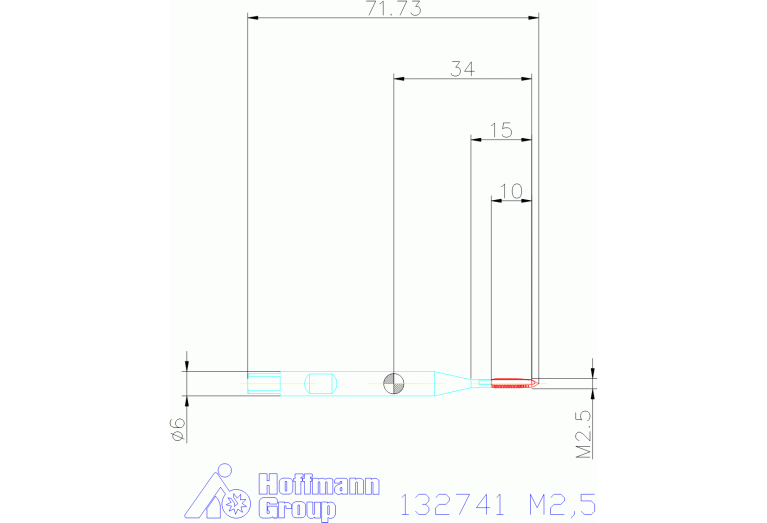

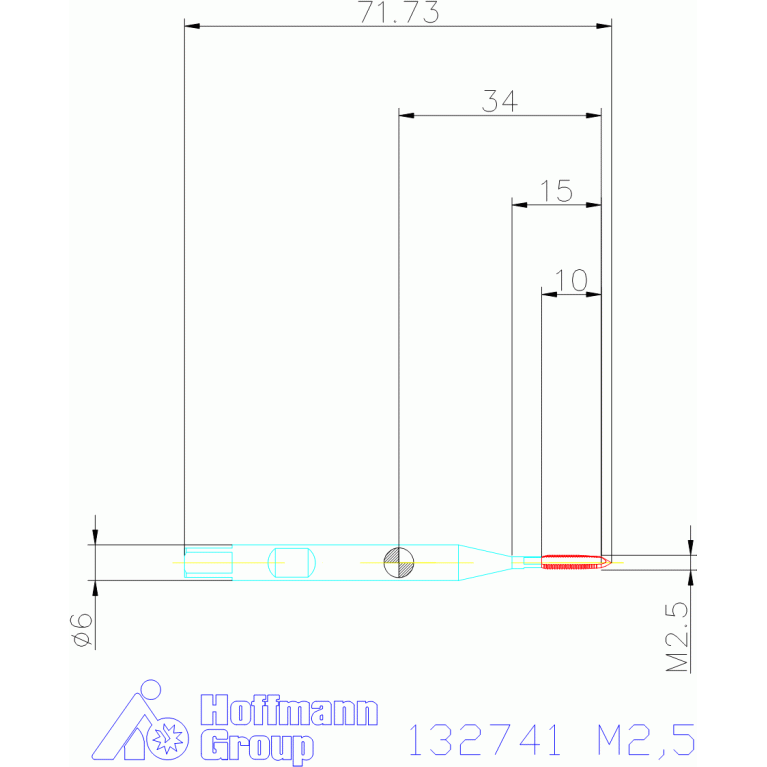

OAL Overall length
71.73 mm
PLCD Gate diameter
2 mm
PLG Plug style
B - Kappa r 8°
TCTR Thread tolerance class
6HX
TD Thread diameter
2.5 mm
THFT Thread form type
M
THL Thread cutting part length
10 mm
THOD Thread designation
M2.5-6HX
TTPID Tap type identifier
1 - Machine tap
Working process
BG - Tapping
WT Weight of item
0.016 kg
