TC115.UNF3/4-L0-WY80AA
TC115.UNF3/4-L0-WY80AA
Артикул:
7528671
В наличии

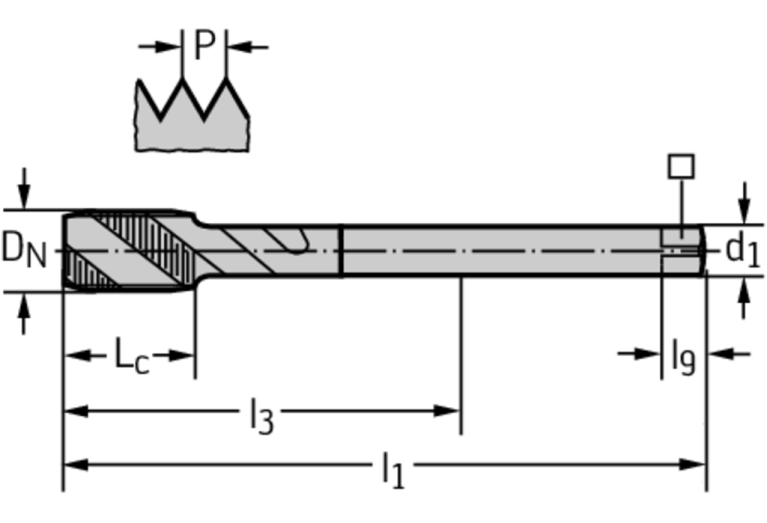

Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL05902125
FamilyProducts
HSS-E machine taps TC115
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
GRDMFG Grade manufacturers designation
WY80AA
HAND Cutting direction
R - Right
ID Technical product number
7528671
Interface codes
J6 / J61
ISO
ZYL21R5900h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
0590
LOC-03 DCONMS Diameter
14.986 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21R5900h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL05902125
LS Shank length
90 mm
Materials
P,M,K,N
Name Identifying order number
TC115.UNF3/4-L0-WY80AA
NOF Flute count
4
OAL Overall length
110 mm
PLCD Gate diameter
17.38 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN/ANSI
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
4.45 mm
TCTR Thread tolerance class
2B
TDFR Thread diameter nominal fraction
3/4 in
TDIN Thread diameter nominal inch
0.75 in
THFT Thread form type
UNF
THL Thread cutting part length
17 mm
THOD Thread designation
UNF3/4-16-2B
TPI Threads per inch
16 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.125 kg
