Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank MTH-M14X2.00ISO6H-BC-V033-A

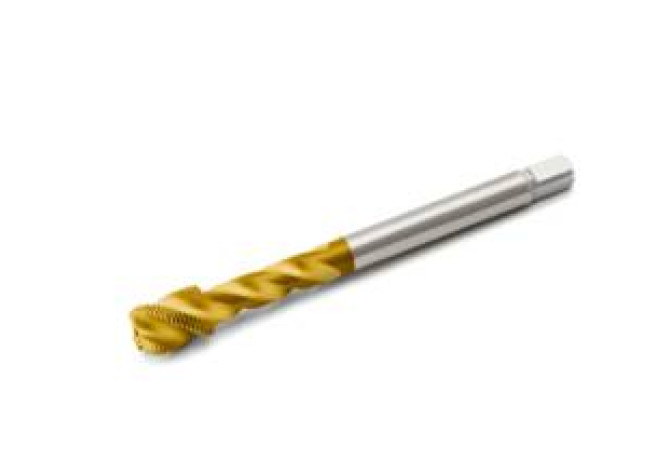

MTH-M14X2.00ISO6H-BC-V033-A

MTH-M14X2.00ISO6H-BC-V033-A MTH-M14X2.00ISO6H-BC-V033-A MTH-M14X2.00ISO6H-BC-V033-A MTH-M14X2.00ISO6H-BC-V033-A

MTH-M14X2.00ISO6H-BC-V033-A

SECO Tools
Артикул: 03000234
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL01102105
FamilyProducts
MTH-M14X2.00ISO6H-BC-V033-A
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
03000234
Interface codes
J6 / J61
ISO
ZYL21G1100$$$$
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0110
LOC-03 DCONMS Diameter
11 mm
LOC-03 ISO
ZYL21G1100$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01102105
Name Identifying order number
MTH-M14X2.00ISO6H-BC-V033-A
NOF Flute count
3

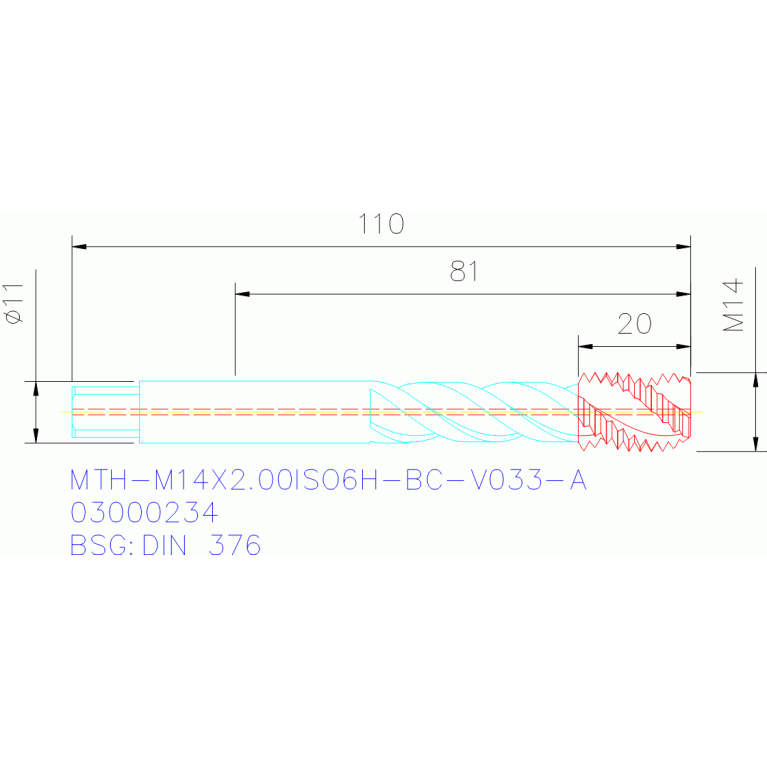

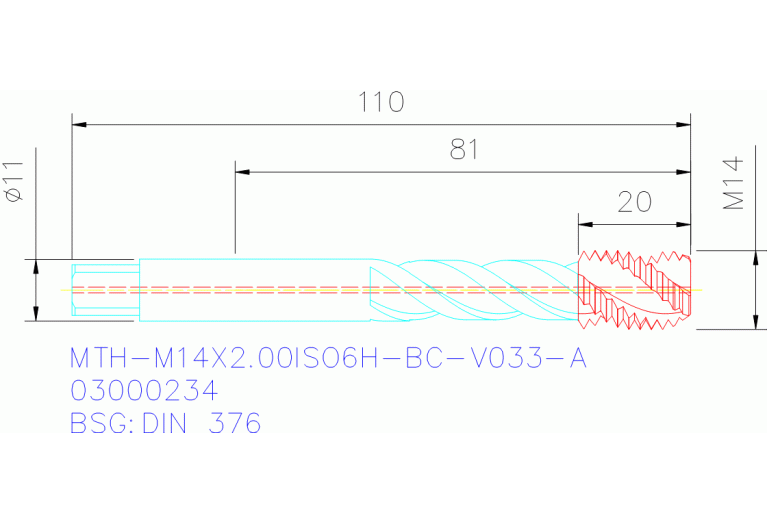

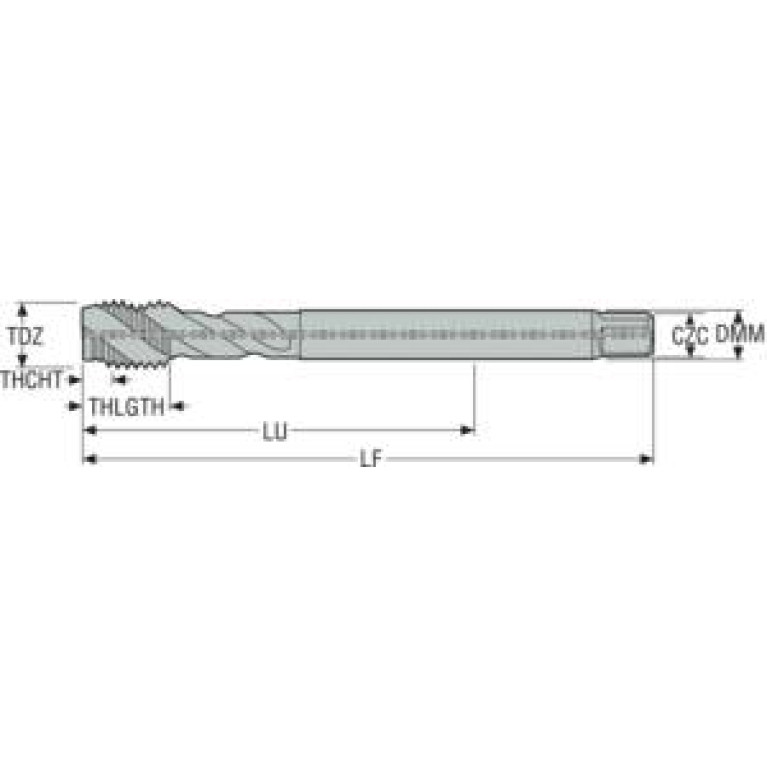

OAL Overall length
110 mm
PLCD Gate diameter
12.1 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN376
TCTR Thread tolerance class
6H
TD Thread diameter
14 mm
THFT Thread form type
M
THL Thread cutting part length
25 mm
THOD Thread designation
M14x2-6H
TP Thread pitch
2 mm
Working process
BG - Tapping
WT Weight of item
0.06 kg
