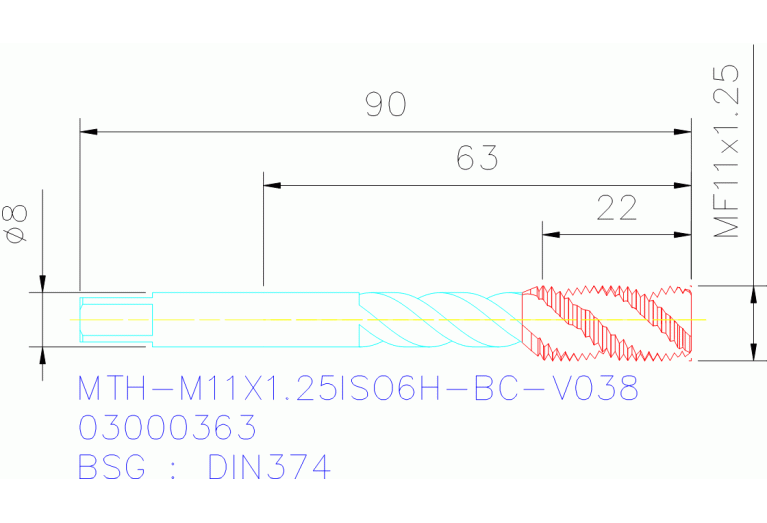

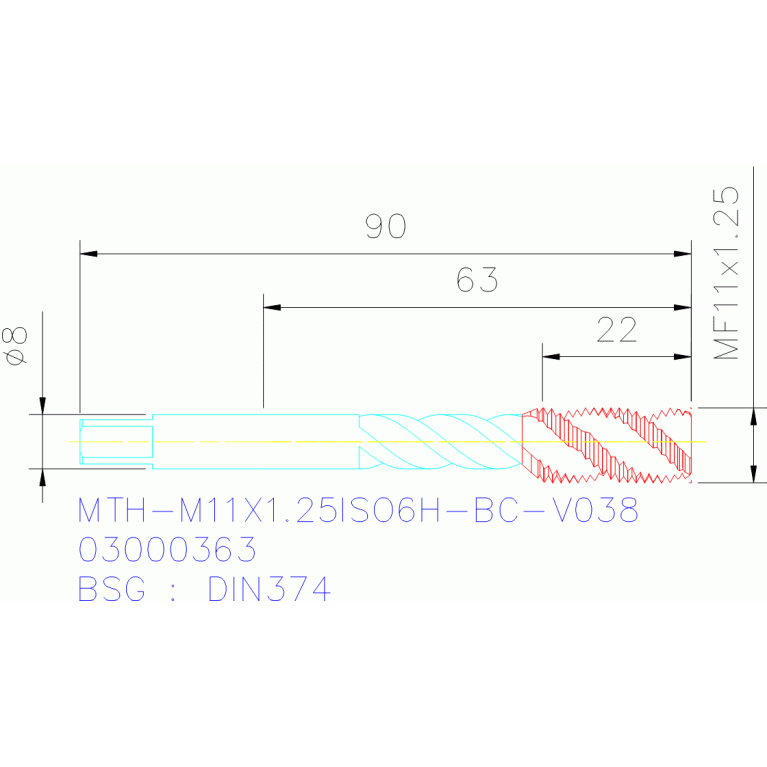

MTH-M11X1.25ISO6H-BC-V038
MTH-M11X1.25ISO6H-BC-V038
Артикул:
03000363
В наличии
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL00802105
FamilyProducts
MTH-M11X1.25ISO6H-BC-V038
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
03000363
Interface codes
J6 / J61
ISO
ZYL21F8000$$$$
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 ISO
ZYL21F8000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802105
Name Identifying order number
MTH-M11X1.25ISO6H-BC-V038
NOF Flute count
3
OAL Overall length
90 mm
PLCD Gate diameter
9.8 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN374
TCTR Thread tolerance class
6H
TD Thread diameter
11 mm
THFT Thread form type
MF
THL Thread cutting part length
22 mm
THOD Thread designation
MF11x1.25-6H
TP Thread pitch
1.25 mm
Working process
BG - Tapping
WT Weight of item
0.033 kg
