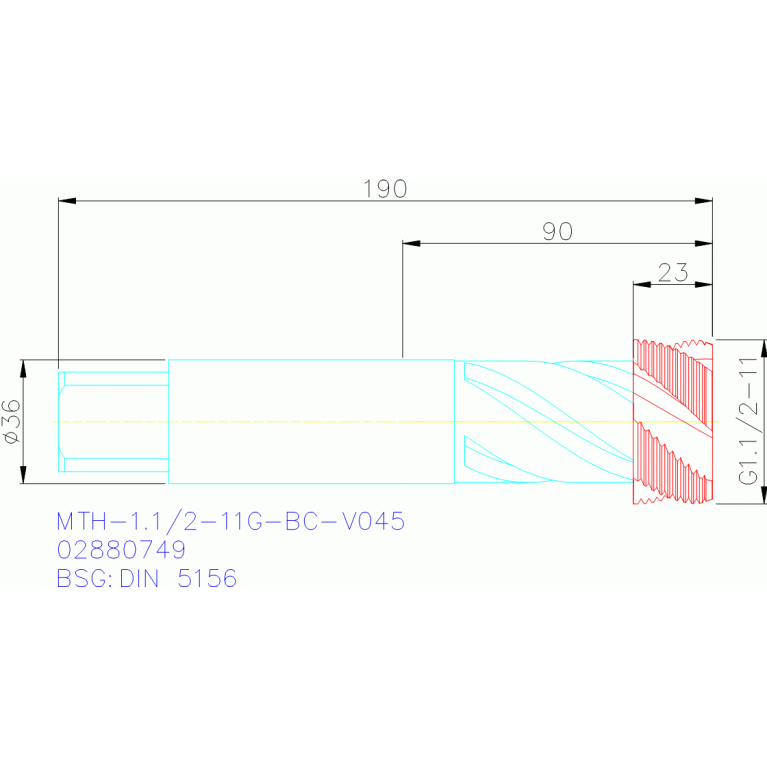

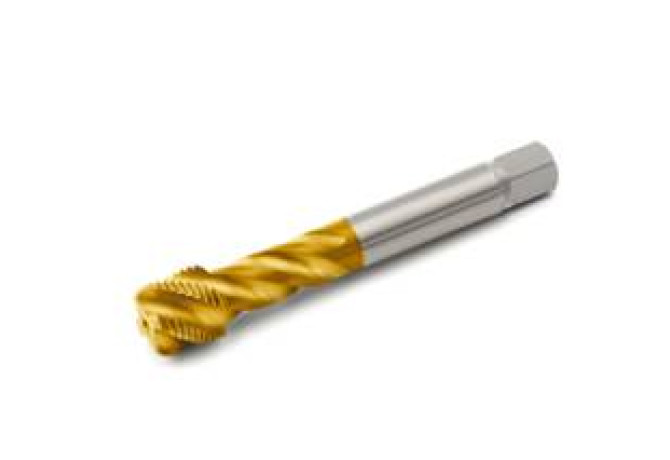

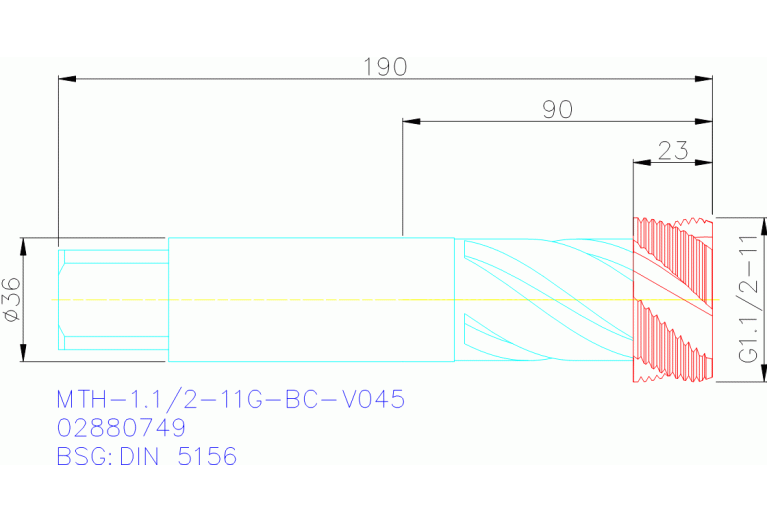

MTH-1.1/2-11G-BC-V045
MTH-1.1/2-11G-BC-V045
Артикул:
02880749
В наличии
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL03602105
FamilyProducts
MTH-1.1/2-11G-BC-V045
FHA Flute helix angle
45 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
02880749
Interface codes
J6 / J61
ISO
ZYL21G3600$$$$
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0360
LOC-03 DCONMS Diameter
36 mm
LOC-03 ISO
ZYL21G3600$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03602105
Name Identifying order number
MTH-1.1/2-11G-BC-V045
NOF Flute count
4
OAL Overall length
190 mm
PLCD Gate diameter
45.4 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN5156
TCTR Thread tolerance class
NORMAL
TD Thread diameter
47.803 mm
TDFR Thread diameter nominal fraction
1/2 in
THFT Thread form type
G
THL Thread cutting part length
23 mm
THOD Thread designation
G1/2-11-NORMAL
TPI Threads per inch
11 1/in
Working process
BG - Tapping
WT Weight of item
1.302 kg
