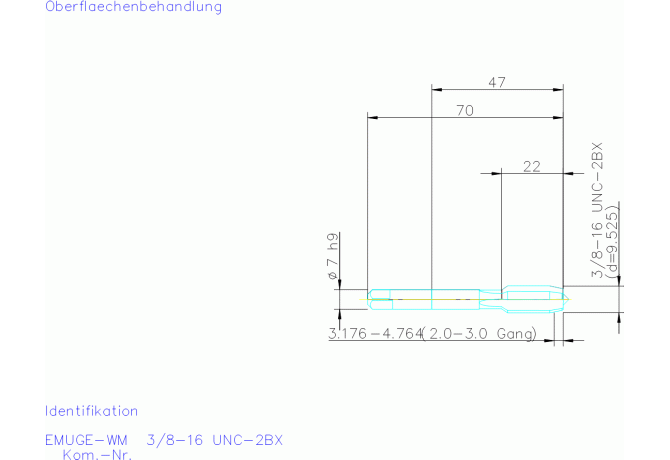

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank H0483001.5011

H0483001.5011

Артикул: H0483001.5011

В наличии

В корзину

Описание

Характеристики

COATN Coating

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL00702105

DRVS Drive size

5.5 mm

FamilyProducts

WM-Satz-GB-2S(1,F)

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702105

Name Identifying order number

H0483001.5011

OAL Overall length

70 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 2184-2

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

2BX

TD Thread diameter

9.525 mm

TDFR Thread diameter nominal fraction

3/8 in

TDIN Thread diameter nominal inch

0.375 in

THFT Thread form type

UNC

THOD Thread designation

UNC3/8-16-2BX

TP Thread pitch

1.588 mm

TPI Threads per inch

16 1/in

Working process

No working processes available

WT Weight of item

0.04 kg
