Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank E2021302-M8

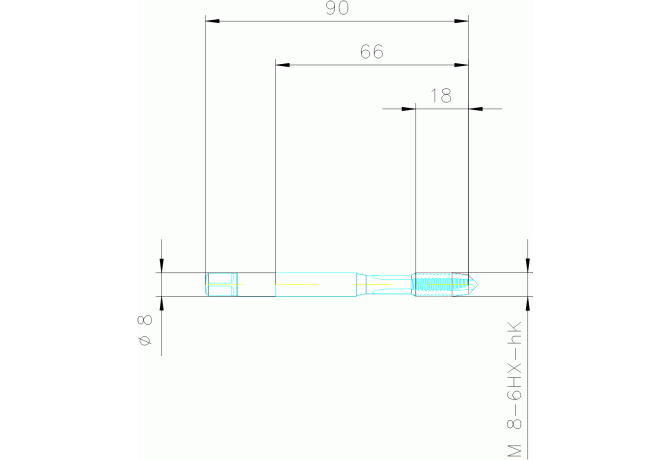

E2021302-M8

E2021302-M8 E2021302-M8

E2021302-M8

Walter
Артикул: 5081549
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL00802105
FamilyProducts
HSS-E PM machine taps
FHA Flute helix angle
0 Degree
GRDMFG Grade manufacturers designation
THL
HAND Cutting direction
R - Right
ID Technical product number
5081549
Interface codes
J6 / J61
ISO
ZYL21F8000h$09
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21F8000h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802105
Name Identifying order number
E2021302-M8
NOF Flute count
3
OAL Overall length
93.38 mm
PLCD Gate diameter
6.69 mm
STDNO Standard
DIN 371
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
5.09684 mm
TCTR Thread tolerance class
6HX
TD Thread diameter
8 mm
THFT Thread form type
M
THL Thread cutting part length
18 mm
THOD Thread designation
M8x1.25-6HX
TP Thread pitch
1.25 mm
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.035 kg
