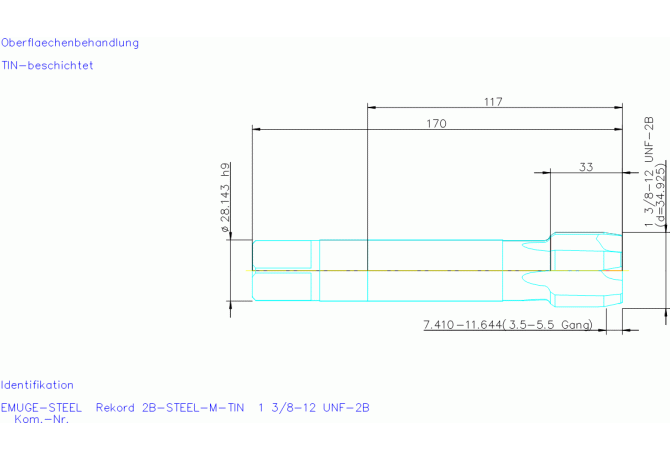

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank CU201400.5055

CU201400.5055

Артикул: CU201400.5055

В наличии

В корзину

Описание

Характеристики

COATN Coating

TIN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL11082125

DRVS Drive size

21.11 mm

FamilyProducts

MGB-US-Rek.2B-STEEL-M-TIN

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

1108

LOC-03 DCONMS Diameter

28.143 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL11082125

Name Identifying order number

CU201400.5055

OAL Overall length

170 mm

PLG Plug style

B - Kappa r 8°

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

TD Thread diameter

34.925 mm

TDFR Thread diameter nominal fraction

1 3/8 in

TDIN Thread diameter nominal inch

1.375 in

THFT Thread form type

UNF

THOD Thread designation

UNF1 3/8-12-2B

TP Thread pitch

2.117 mm

TPI Threads per inch

12 1/in

Working process

No working processes available

WT Weight of item

0.78 kg
