CU201000.5046
CU201000.5046
Артикул:
CU201000.5046
В наличии
Характеристики
COATN Coating
--
COMPC Company code
E - Emuge
CXSC Coolant exit style code
0 - Without coolant exit
DIN
ZYL03232125
DRVS Drive size
6.15 mm
FamilyProducts
MGB-US-Rek.2B-STEEL-M
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSSE
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
0323
LOC-03 DCONMS Diameter
8.204 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03232125
Name Identifying order number
CU201000.5046

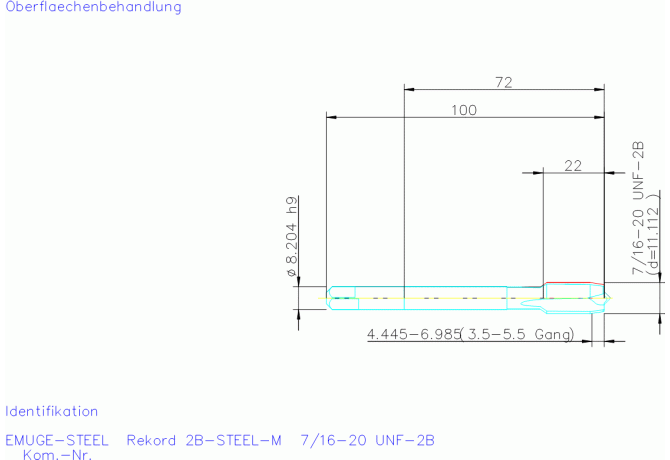

OAL Overall length
100 mm
PLG Plug style
B - Kappa r 8°
TCDCONMS ISO-tolerance class shank diameter
h9
TCTR Thread tolerance class
2B
TD Thread diameter
11.112 mm
TDFR Thread diameter nominal fraction
7/16 in
TDIN Thread diameter nominal inch
0.4375 in
THFT Thread form type
UNF
THOD Thread designation
UNF7/16-20-2B
TP Thread pitch
1.27 mm
TPI Threads per inch
20 1/in
Working process
No working processes available
WT Weight of item
0.039 kg
