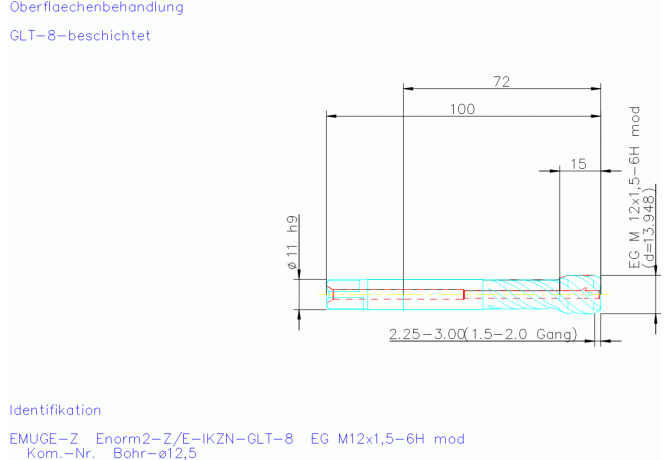

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank C951S900.1002

C951S900.1002

Артикул: C951S900.1002

В наличии

В корзину

Описание

Характеристики

COATN Coating

GLT-8

COMPC Company code

E - Emuge

CXSC Coolant exit style code

2 - With Coolant exit, radial

DIN

ZYL01102115

DRVS Drive size

9 mm

FamilyProducts

MGB-Enorm2-Z/E-IKZN-GLT-8

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0110

LOC-03 DCONMS Diameter

11 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01102115

Name Identifying order number

C951S900.1002

OAL Overall length

100 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

DIN 40435

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

6H mod

TD Thread diameter

12 mm

THFT Thread form type

EGM

THOD Thread designation

EGM12x1.5-6H mod

TP Thread pitch

1.5 mm

Working process

No working processes available

WT Weight of item

0.052 kg
