Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank C9519400.5015

C9519400.5015

Артикул: C9519400.5015

В наличии

В корзину

Описание

Характеристики

COATN Coating

TICN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

2 - With Coolant exit, radial

DIN

ZYL01202115

DRVS Drive size

9 mm

FamilyProducts

MGB-Enorm2-Z/E-IKZN-TICN

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202115

Name Identifying order number

C9519400.5015

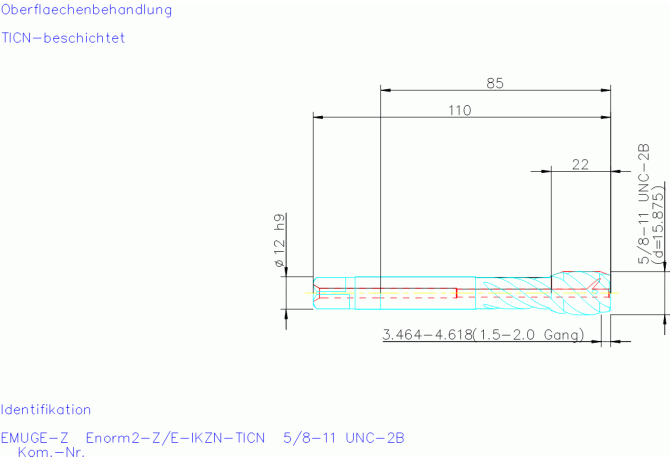

OAL Overall length

110 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

DIN 2184-1

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

TD Thread diameter

15.875 mm

TDFR Thread diameter nominal fraction

5/8 in

TDIN Thread diameter nominal inch

0.625 in

THFT Thread form type

UNC

THOD Thread designation

UNC5/8-11-2B

TP Thread pitch

2.309 mm

TPI Threads per inch

11 1/in

Working process

No working processes available

WT Weight of item

0.089 kg
