C9519400.4035

Артикул: C9519400.4035

В наличии

В корзину

Описание

Характеристики

COATN Coating

TICN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

2 - With Coolant exit, radial

DIN

ZYL00702115

DRVS Drive size

5.5 mm

FamilyProducts

MGB-Enorm2-Z/E-IKZN-TICN

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0070

LOC-03 DCONMS Diameter

7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00702115

Name Identifying order number

C9519400.4035

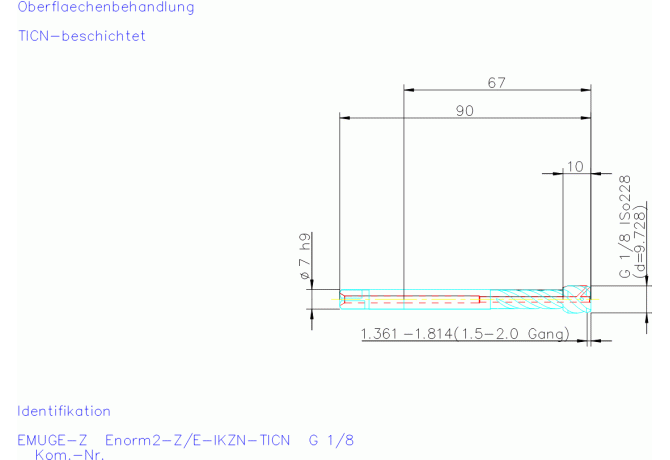

OAL Overall length

90 mm

PLG Plug style

E - Kappa r 23°

STDNO Standard

DIN 5156

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

9.728 mm

TDFR Thread diameter nominal fraction

1/8 in

TDIN Thread diameter nominal inch

0.125 in

THFT Thread form type

TP Thread pitch

0.907 mm

TPI Threads per inch

28 1/in

Working process

No working processes available

WT Weight of item

0.025 kg
