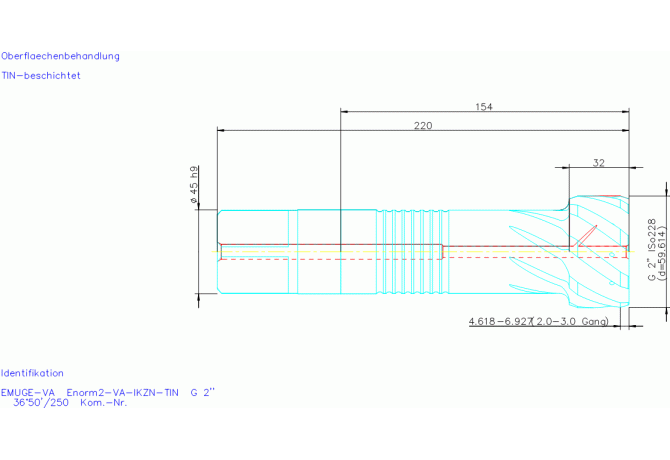

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank C9503100.4050

C9503100.4050

Артикул: C9503100.4050

В наличии

В корзину

Описание

Характеристики

COATN Coating

TIN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

2 - With Coolant exit, radial

DIN

ZYL04502115

DRVS Drive size

35 mm

FamilyProducts

MGB-Enorm2-VA-IKZN-TIN

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0450

LOC-03 DCONMS Diameter

45 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04502115

Name Identifying order number

C9503100.4050

OAL Overall length

220 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 5156

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

59.614 mm

TDFR Thread diameter nominal fraction

2 in

TDIN Thread diameter nominal inch

2 in

THFT Thread form type

TP Thread pitch

2.309 mm

TPI Threads per inch

11 1/in

Working process

No working processes available

WT Weight of item

2.968 kg
