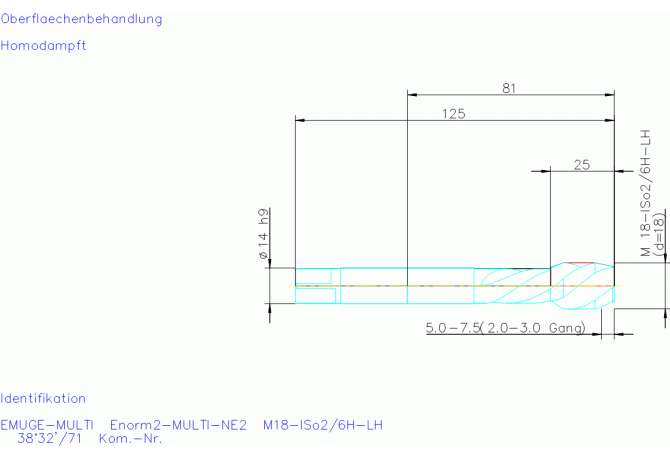

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank C5503250.0118

C5503250.0118

Артикул: C5503250.0118

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

NE2

COMPC Company code

E - Emuge

CXSC Coolant exit style code

0 - Without coolant exit

DIN

ZYL01402105

DRVS Drive size

11 mm

FamilyProducts

MGB-Enorm2-MULTI-NE2

FHH Flute helix hand

L - Hand of helix left

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

L - Left

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01402105

Name Identifying order number

C5503250.0118

OAL Overall length

125 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 376

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

ISO 2/6H

TD Thread diameter

18 mm

THFT Thread form type

THOD Thread designation

M18x2.5-ISO 2/6H

TP Thread pitch

2.5 mm

Working process

No working processes available

WT Weight of item

0.135 kg
