C425A311.5514

Артикул: C425A311.5514

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TICN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DIN

ZYL00802115

DRVS Drive size

6.2 mm

FamilyProducts

MGB-Rek.2D-Z-BF-IKZ-HSSPM-TICN

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

HSSE-PM

GRDPRIO Standard designation of the grade main application

HSS-E-PM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00802115

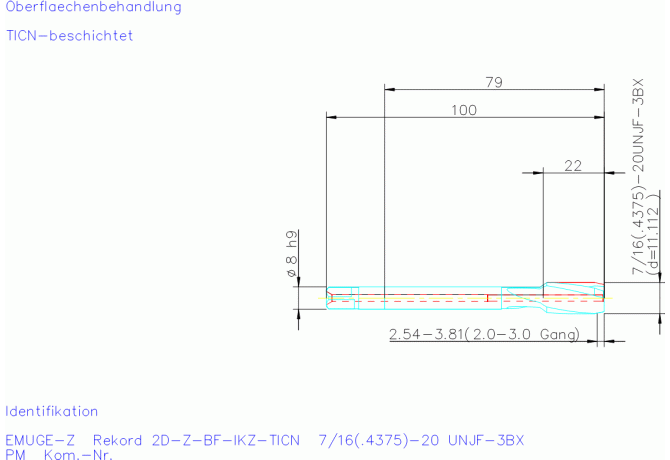

Name Identifying order number

C425A311.5514

OAL Overall length

100 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

DIN 2184-1

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

3BX

TD Thread diameter

11.112 mm

TDFR Thread diameter nominal fraction

7/16 in

TDIN Thread diameter nominal inch

0.4375 in

THFT Thread form type

UNJF

THOD Thread designation

UNJF7/16-20-3BX

TP Thread pitch

1.27 mm

TPI Threads per inch

20 1/in

Working process

No working processes available

WT Weight of item

0.036 kg
