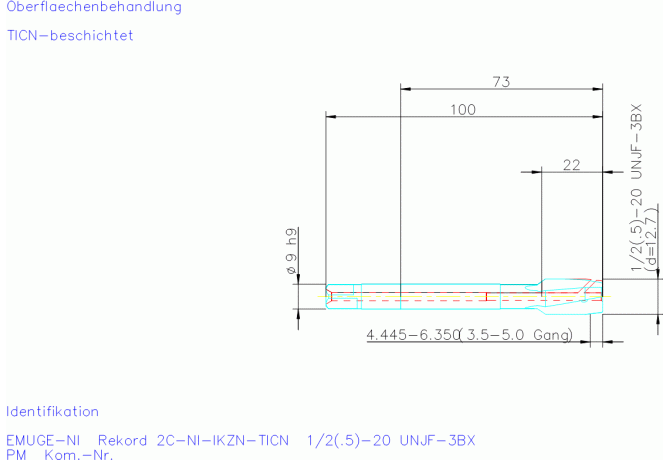

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank C198J411.5515

C198J411.5515

Артикул: C198J411.5515

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TICN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

2 - With Coolant exit, radial

DIN

ZYL00902115

DRVS Drive size

7 mm

FamilyProducts

MGB-Rek.2C-NI-IKZN-TICN

FHH Flute helix hand

L - Hand of helix left

GRDMFG Grade manufacturers designation

HSSE

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

301-01 - Thread cutting tap with offset shank

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0090

LOC-03 DCONMS Diameter

9 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00902115

Name Identifying order number

C198J411.5515

OAL Overall length

100 mm

PLG Plug style

D - Kappa r 8°

STDNO Standard

DIN 2184-1

TCDCONMS ISO-tolerance class shank diameter

TCTR Thread tolerance class

3BX

TD Thread diameter

12.7 mm

TDFR Thread diameter nominal fraction

1/2 in

TDIN Thread diameter nominal inch

0.5 in

THFT Thread form type

UNJF

THOD Thread designation

UNJF1/2-20-3BX

TP Thread pitch

1.27 mm

TPI Threads per inch

20 1/in

Working process

No working processes available
