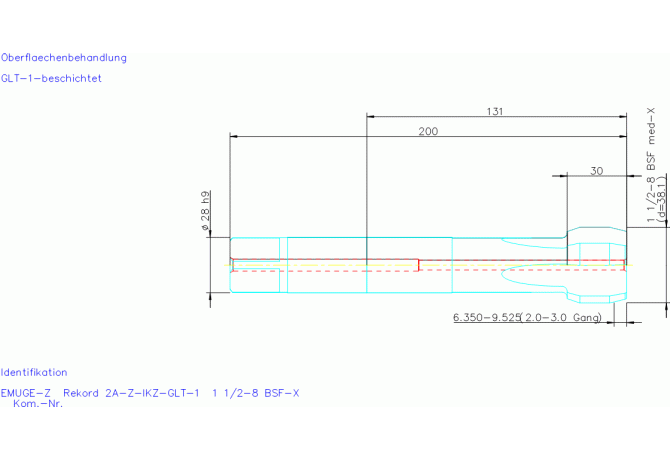

Главная Каталог продукции Toolunited 10 301-01 - Thread cutting tap with offset shank C195C401.3106

C195C401.3106

C195C401.3106 C195C401.3106

C195C401.3106

Emuge
Артикул: C195C401.3106
В наличии
В корзину
Описание
Характеристики
COATN Coating / Покрытие
GLT-1
COMPC Company code
E - Emuge
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DIN
ZYL02802115
DRVS Drive size
22 mm
FamilyProducts
MGB-Rek.2A-Z-IKZ-GLT-1
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSSE
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-01 - Thread cutting tap with offset shank
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0280
LOC-03 DCONMS Diameter
28 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02802115
Name Identifying order number
C195C401.3106
OAL Overall length
200 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
DIN 2184-1
TCDCONMS ISO-tolerance class shank diameter
h9
TCTR Thread tolerance class
med-X
TD Thread diameter
38.1 mm
TDFR Thread diameter nominal fraction
1 1/2 in
TDIN Thread diameter nominal inch
1.5 in
THFT Thread form type
BSF
THOD Thread designation
BSF1 1/2-8-med-X
TP Thread pitch
3.175 mm
TPI Threads per inch
8 1/in
Working process
No working processes available
WT Weight of item
0.847 kg
